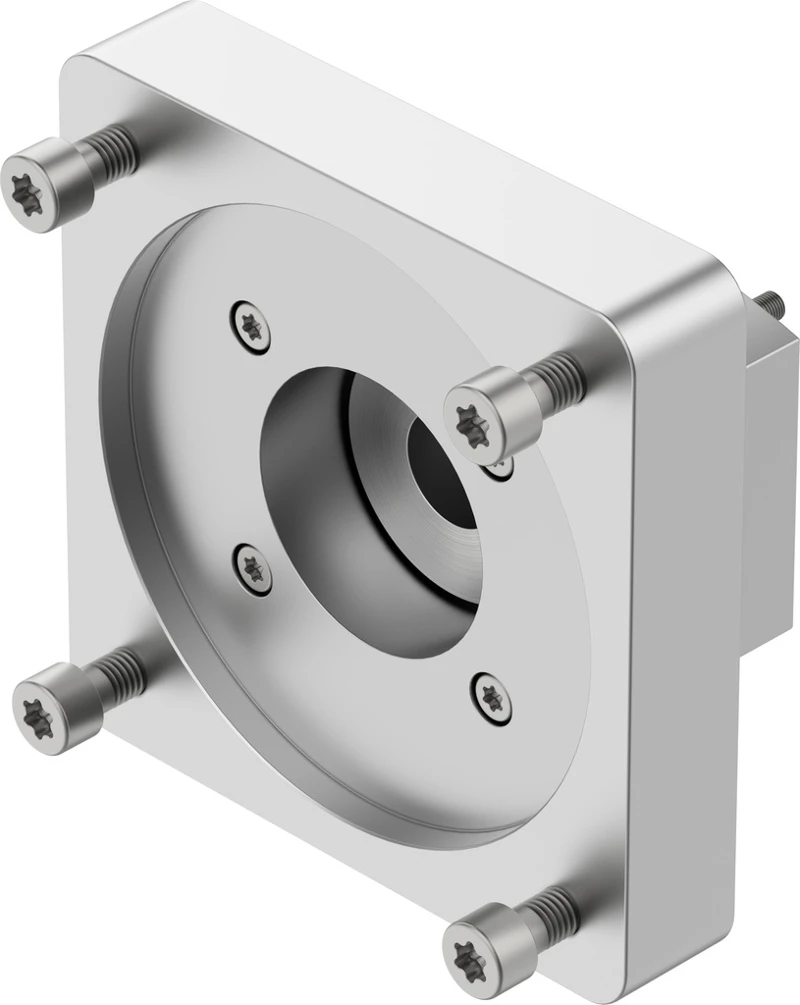

Axial kit, EAMM-A-L62-150A

Specifications • Toothed belt axes EGC-TB-KF, with recirculating ball bearing guide • Accessories, Axial kit • Nominal length 72.5 mm • Mounting position optional • Max. rotational speed 5500 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 151 kgmm² • Transmittable torque 47 Nm • Product weight 2526 g • Interface code, actuator L62 • Interface code, motor in 140A, 150A • Note on materials RoHS-compliant
