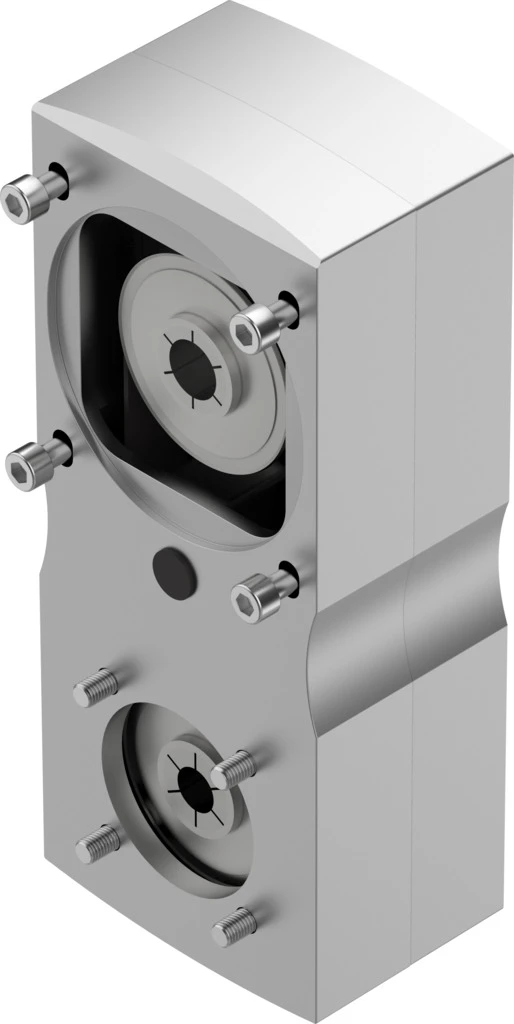

Parallel kit, EAMM-U-145-D80-150A-188

Specifications • Parallel kits EAMM-U-...-D/S • Permissible axis/motor combinations with electric cylinder ESBF • Size 145 • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 4000 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 2259 kgmm² • Frictional torque independent of load 2 Nm • Transmittable torque 50 Nm • Product weight 11500 g • Interface code, actuator D80B • Interface code, motor in 140A, 150A • Note on materials RoHS-compliant
