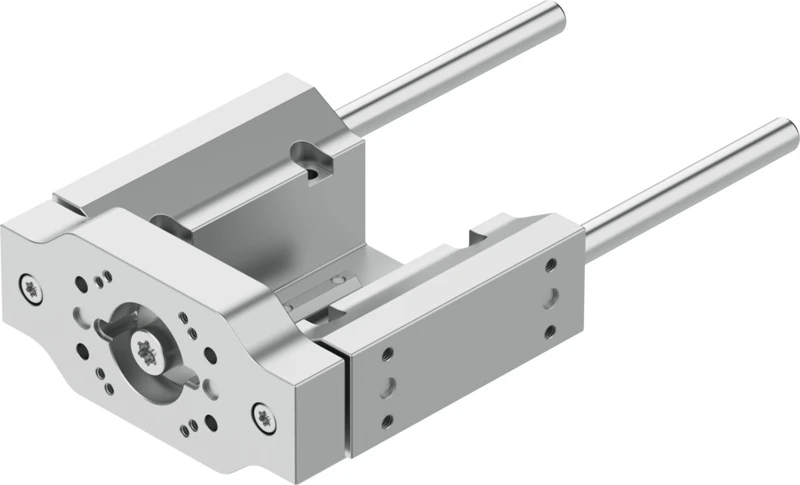

Guide unit, EAGF-P2-KF-60-100
SKU: 8158138
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder EPCC
• Accessories, Guide unit
• Size 60
• Stroke 100 mm
• Reversing backlash theoretical 0 µm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Max. acceleration 25 m/s²
• Max. speed 1 m/s
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP40
• Ambient temperature 0 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Guide unit EAGF
• The quietly operating guide units EAGF for electric cylinders absorb external transverse loads and provide excellent protection against rotation even with high torques.
• For electric cylinders EPCC, EPCO and ESBF
• For absorbing high process forces and torques
• High guide precision
