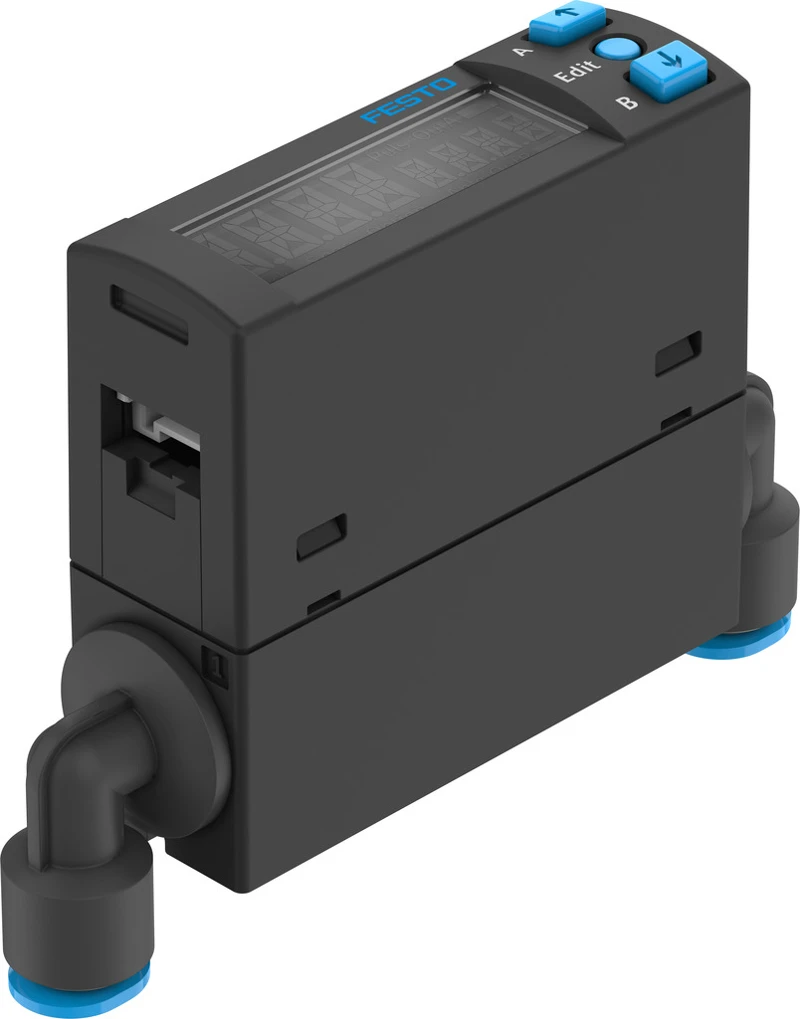

Flow sensor, SFAH-50U-Q6AR-PNLK-PNVBA-L1
SKU: 8158426
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flow sensors SFAH
• Measured variable Mass flow rate, Volumetric flow rate
• Flow direction Unidirectional
• Measuring principle Thermal
• Measurement method Heat transfer
• Start value for flow rate measuring range 1 l/min
• End value for flow rate measuring range 50 l/min
• Operating pressure -0.9 bar ... 10 bar
• Operating medium Argon, Compressed air to ISO 8573-1:2010 [6:4:4], Nitrogen
• Media temperature 0 °C ... 50 °C
• Ambient temperature 0 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Flow sensor SFAH
• The highly flexible SFAH monitors the flow rate of compressed air and non-corrosive gases.
• Its compact design (20 x 58 mm), numerous installation options and space-saving adjustable QS elbow connections make it particularly suitable for many industry sectors.
• Process air, compressed air, forming gas consumption and pneumatic object monitoring, handling ultra-small parts, leak test
• Compact design 20x58 mm
• Clear 2-line display
• Mounting: H-rail mounting, wall or surface mounting, front panel mounting
• Serial communication integrated using IO-Link® 1.1
