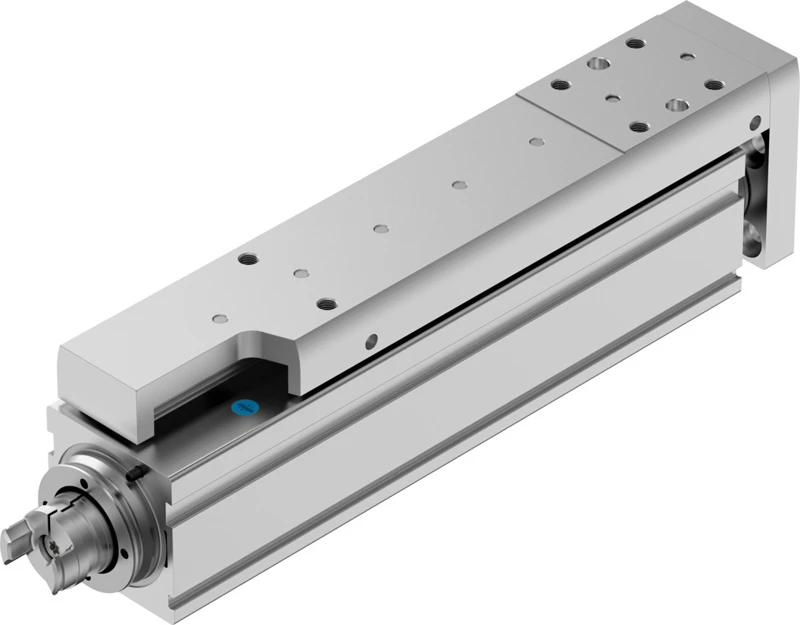

Mini slide, EGSC-BS-KF-32-100-3P
SKU: 8162072
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slides EGSC-BS
• Working stroke 100 mm
• Size 32
• Stroke reserve 0 mm
• Reversing backlash theoretical 150 µm
• Spindle diameter 8 mm
• Spindle pitch 3 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electric mini slide, With ball screw drive
• Type of motor Stepper motor, Servo motor
• Max. feed force Fx 60 N
• Repetition accuracy ±0.015 mm
Buy currently uses Select Automation shop pricing and checkout.
Mini slide EGSC-BS
• The compact, cost-effective mini slide EGSC is perfect as an individual axis for precise positioning tasks.
• Thanks to the great connectivity it offers with the axis series ELGC, the mini slide is perfect in 2D or 3D handling systems.
• Precise guide and ball screw drive
• Compact dimensions
• Flexible motor mounting
• The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation
• Variants recommended for production systems for manufacturing lithium-ion batteries
