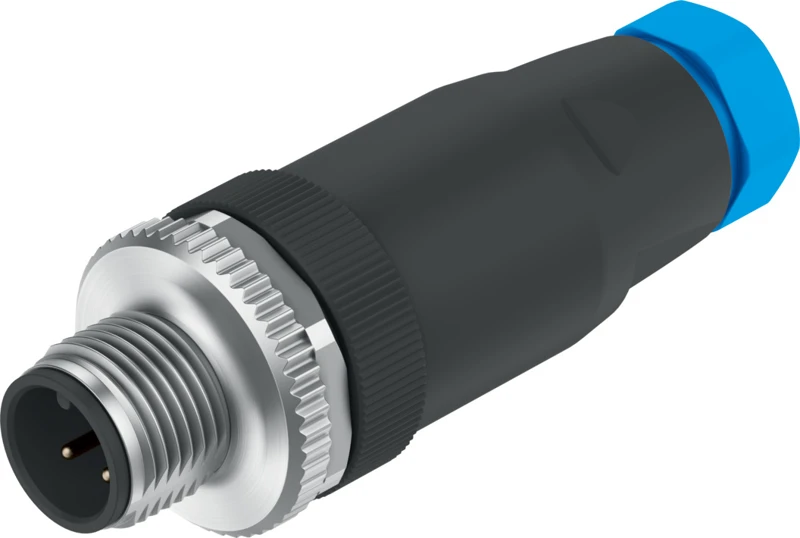

Plug, NECB-S-M12G4-C2
SKU: 8162294
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plug, socket NECB
• Conforms to standard EN 61076-2-101
• Approval c UL us listed (OL)
• Certificate issuing authority UL E474609
• Frequency of connection 100
• Cable outlet Straight
• Product weight 18 g
• Electrical connection 1, function Controller side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Plugs
• Electrical connection 1, connector system M12x1, A-coded to EN 61076-2-101
• Electrical connection 2, function Field device side
• Electrical connection 2, connection type Cable
• Electrical connection 2, connector system Screw terminal
• Electrical connection 2, number of connections/cores 4
Buy currently uses Select Automation shop pricing and checkout.
Plug, socket NECB
• Plug connectors for many cable diameters and wire cross-sections
• Screw terminals with a wide range of nominal cross sections up to 0.75 mm
• UL certified
• Tested in accordance with IEC 61010-1 and IEC 61010- 2-202 for Festo valves
• Degree of protection: IP65 and IP67
• Better seals (FPM)
• Extended temperature range: -25 ... +90 °C
