Flow sensor, SFAB-50U-HQ6-PNLK-PNVBA-M12
SKU: 8162826
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flow sensor SFAB
• Measured variable Mass flow rate, Temperature Volume, Volumetric flow rate
• Flow direction Unidirectional, P1 -> P2
• Measuring principle Thermal
• Measurement method Heat Loss
• Start value for flow rate measuring range 0.5 l/min
• End value for flow rate measuring range 50 l/min
• Temperature measurement start value 0 °C
• Temperature measurement end value 50 °C
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Operating pressure 0 psi ... 145 psi
• Operating medium Argon
• Compressed air to ISO 8573-1:2010 [6:4:4] Carbon dioxide, Nitrogen
• Flow characteristic curve end value 50 l/min
• Pneumatic connection For tubing O.D. 6 mm
Buy currently uses Select Automation shop pricing and checkout.

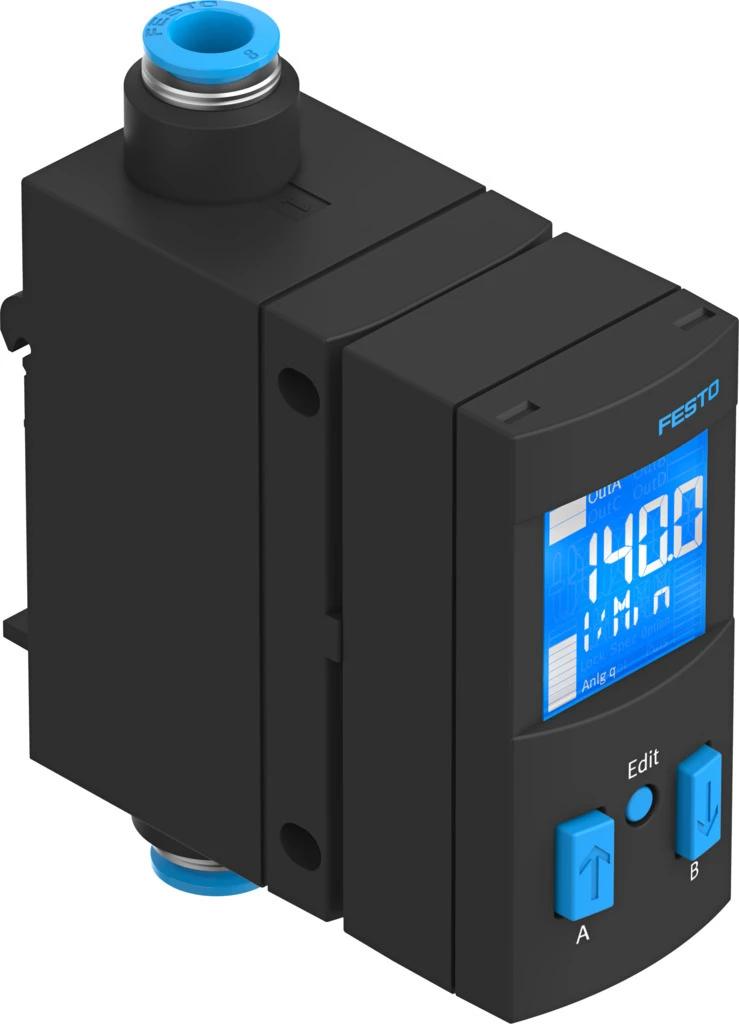

Flow sensor SFAB
• Impressive, simple, reliable: our new flow sensors SFAB have an attractive display and control concept, and are very impressive when it comes to flow monitoring, leakage detection and leak tightness testing of end products.
• Flow sensor with integrated digital display
• With unidirectional flow input
• Mounting: H-rail, wall or surface mounting
• Certification: C-Tick
• Sustainable operation with system consumption monitoring
