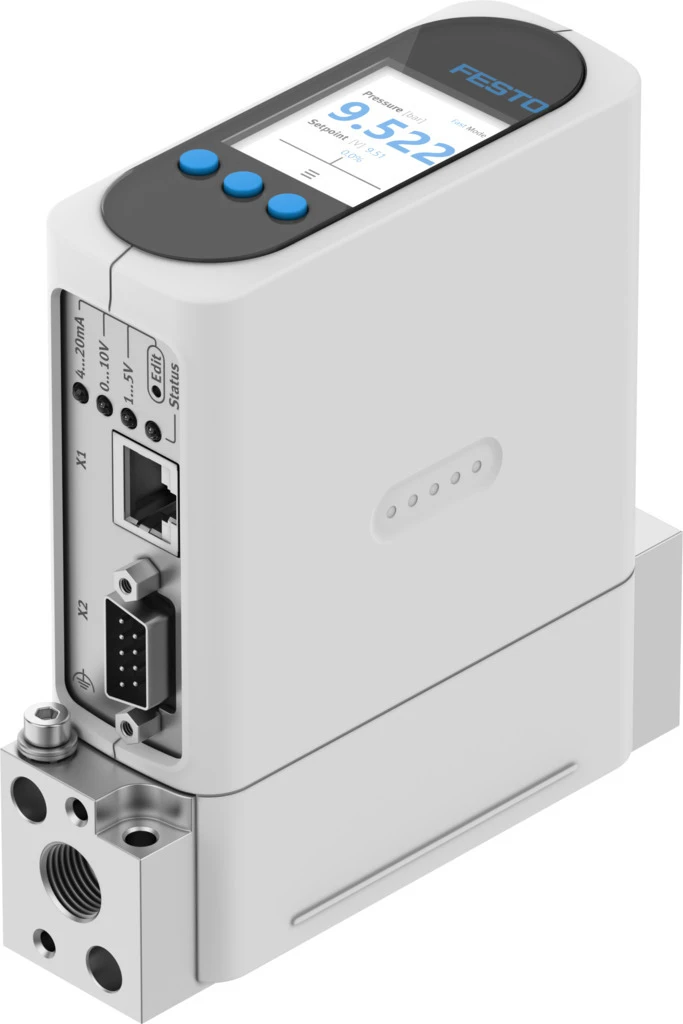

Proportional flow control valve, VEMD-L-6-60-100-D9-G14-5YMPM1D-VA

Specifications • Mass flow controller VEMD • Size 100 • Standard nominal flow rate (standardised to DIN 1343) 100 l/min • Flow rate control range 2 l/min ... 100 l/min • Flow direction Non-reversible • Nominal operating pressure 0.3 MPa • Nominal operating pressure 3 bar • Nominal operating pressure 43.5 psi • Operating pressure 0.1 MPa ... 0.6 MPa • Operating pressure 1 bar ... 6 bar • Overload pressure 0.8 MPa • Overload pressure 8 bar • Overload pressure 116 psi • Burst pressure 1.8 MPa • Burst pressure 18 bar • Burst pressure 261 psi • Accuracy of flow rate ± (2% o.m.v. + 1% FS) • Repetition accuracy of flow rate ± (0.25% o.m.v. + 0.25% FS) • Valve function 2-way proportional flow control valve
