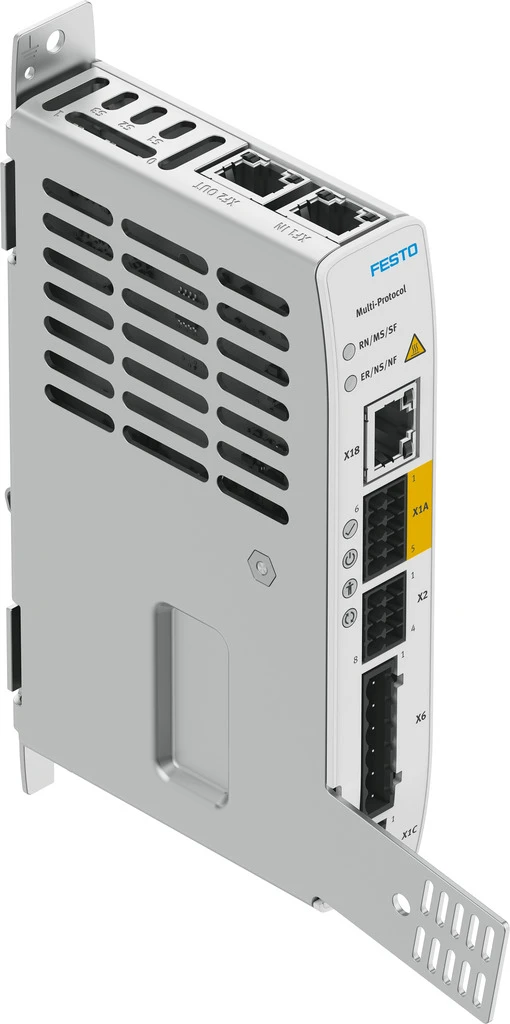

      Servo drive, CMMT-ST-C8-1C-MP-S0

      SKU: 8163946

      Out of stock

      Availability: Out of Stock

      Short Description
      Specifications • Servo drive • Controller operating mode, Cascade controller - P position controller - PI speed controller - PI current regulator for F or M - Profile operation with record and direct mode - Interpolated mode via fieldbus - Synchronised operating modes - Homing - Setting-up - Autotuning - Open-loop operation • Operating mode of drive unit, Field-oriented closed-loop control - Position resolution 24 bit/rev - Real-time data acquisition - 2x input capture (x, v, F) - 2x output trigger (x, v, F) - 1x position encoder input - Sampling rate 16 or 20 kHz - PWM with 16 or 20 KHz • Field bus, protocol EtherCAT® - EtherNet/IP - PROFINET IRT • Controller nominal output 300 VA • Type of mounting Mounting plate, attached with screws, With H-rail • Mounting position Free convection, Vertical • Product weight 350 g • Display Green/yellow/red LED
      8163946
      Alternative image 1
      Servo drive CMMT-ST • The extremely small servo drive CMMT-ST positions and moves highly economically, dynamically and precisely up to 300 W, point-to-point or interpolating. • It is also commissioned simply via Festo Automation Suite and integrated Auto-Tuning in the shortest of time. • Space-optimised servo drive for operating stepper motors and brushless direct current motors (EC motors) • Ideal for positioning tasks and point-to-point and interpolating motion solutions • The new multiprotocol variant (CMMT-...-MP) has all fieldbuses (PROFINET, EtherCAT®, EtherNet/IP, Modbus®) integrated in one servo drive hardware • A servo drive for direct fieldbus integration for controllers from the major manufacturers with associated function blocks • For extremely economical applications with low power requirements of 150 W at 24 V DC, 300 W at 48 V DC and a peak power of 800W • Parameterisable energy management to increase efficiency • Auto-tuning makes commissioning of rotary and linear motions easier • Very efficient for tasks with low power requirements • 50% more compact than the smallest servo drive CMMT-AS • 150 W at 24 V DC, 300 W at 48 V DC • Optimised for use with stepper motors like the tried-and-tested EMMS-ST • Sustainable operation thanks to energy recovery
