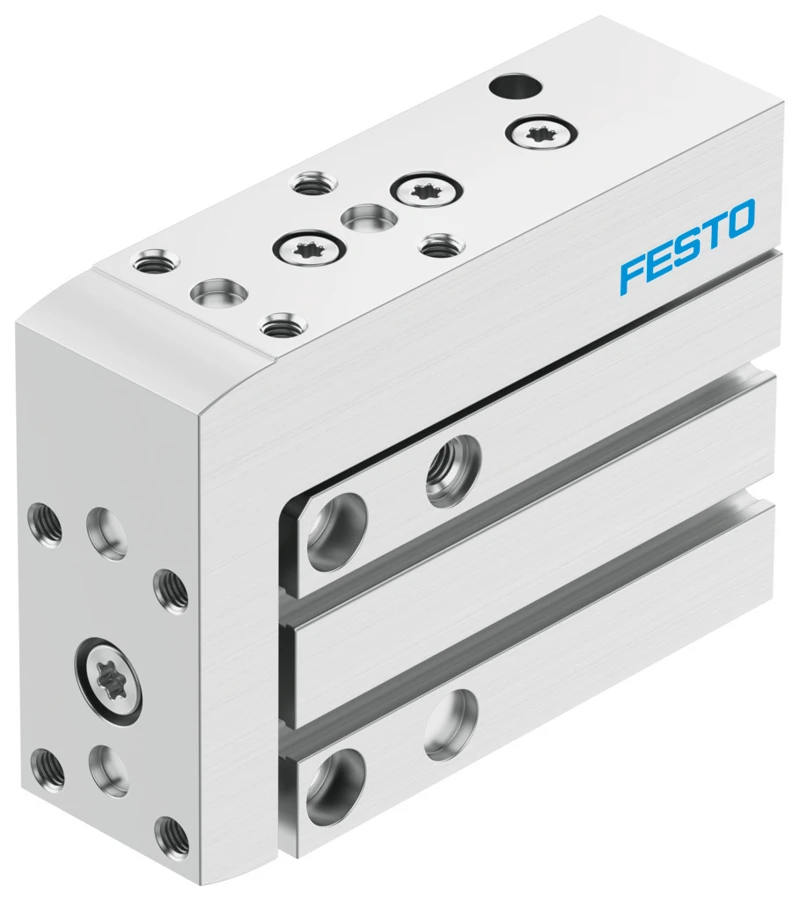

Mini slide, DGSS-16-20-E1A
SKU: 8164071
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide DGSS
• Stroke 20 mm
• Size 16
• Piston diameter 16 mm
• Cushioning Elastomer cushioning, double-sided, stroke not adjustable
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Yoke, Piston rod, Slide
• Position detection Via proximity switch
• Symbol 00991737
• Operating pressure 0.1 MPa ... 0.8 MPa
• Operating pressure 1 bar ... 8 bar
• Operating pressure 14.5 psi ... 116 psi
Buy currently uses Select Automation shop pricing and checkout.
Mini slide DGSS
• The slim mini slide DGSS provides high precision and great rigidity in the smallest of spaces.
• Best of all, the slim mini slide offers stroke adjustment and has integratable cushioning elements.
• Slim design
• Excellent positioning accuracy
• Precise and resilient roller bearing guide
• Optimum price/performance ratio
• Slide and yoke plate from one component
• Can be operated without additional cushioning elements
• Optional: stroke adjustment and external cushioning using accessories
• Recommended for production systems for manufacturing lithium-ion batteries
