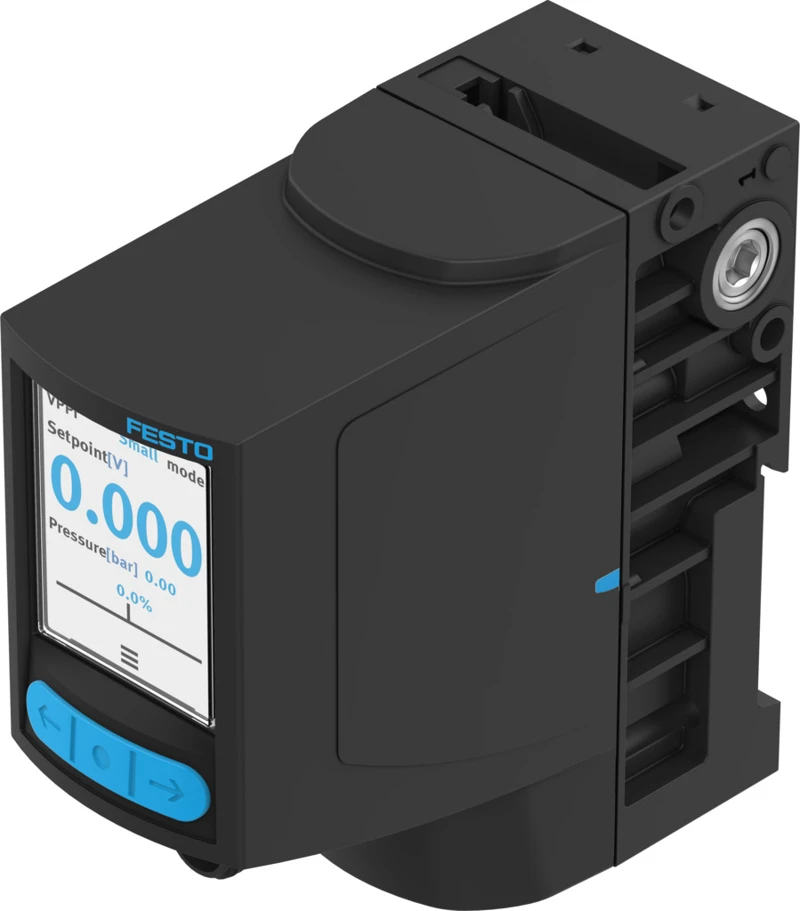

Proportional directional control valve, VPWI-5-L-3-G18-B2-A4-D
SKU: 8167810
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• 3-way Proportional directional control valve VPWI
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Design Poppet valve with spring return
• Type of reset Mechanical spring
• Dimensions (W x L x H) 42.2 x 95.3 x 94.3 mm
• Safety instructions Fail-safe position VPWI, normally closed
• Type of piloting Direct
• Flow direction Non-reversible
• Nominal size, supply 5 mm
• Nominal size, exhaust 5 mm
• Total leakage 5 l/h
Buy currently uses Select Automation shop pricing and checkout.
Proportional directional control valve VPWI
• VPWI is a direct operated proportional directional control valve based on two proportional 2/2-way SiPaC base valves.
• The valve regulates a valve stroke to an electronically preset value and thus enables a pneumatic flow rate to be adjusted proportionally.
• Control is provided by an analogue current or voltage signal, or alternatively via a digital pattern for adjustable setpoint values, or using a PWM signal.
• The characteristic curve of the stroke can be modified by the “curvature factor”, so that an application-specific flow curve can be achieved.
• Furthermore, the valve has a control mode which, with the help of the integrated pressure sensor, can keep the flow rate constant as the counter pressure increases.
