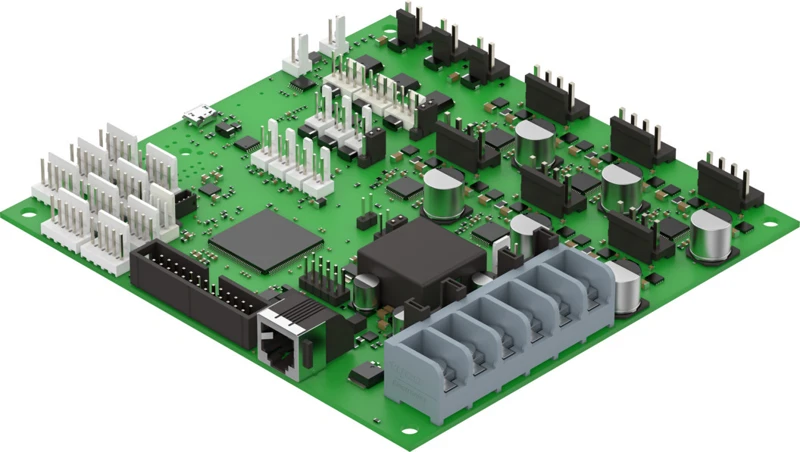

Servo drive, CMXL-ST6-NE-C4-1-MP
SKU: 8168593
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Servo drive CMXL_ST6
• Ambient temperature 10 °C ... 40 °C
• Product weight 155 g
• Degree of protection IP00
• Storage temperature -20 °C ... 60 °C
• Note on materials RoHS-compliant
• LABS (PWIS) conformity VDMA24364 zone III
• Fieldbus link Ethernet
• Number of digital logic inputs 9
• Number of digital logic outputs 24 V DC 19
• Bus connection Socket
• Controller operating mode Direct operation, Homing, Open-loop operation
• Process interfacing Drives with positioning function
Buy currently uses Select Automation shop pricing and checkout.
Servo drive CMXL_ST6
• The servo drive CMXL is a motion controller for the 3D gantry EXCL and can control up to 6 stepper motors up to 4.5 A (open loop).
• 6-axis low-voltage servo drive for stepper motors, open-loop, no encoder inputs
• Open circuit board for integration in desktop devices (without control cabinet)
• Digital interface Ethernet, USB - positioning via G-code commands
• Digital inputs for connecting the microswitches for homing
