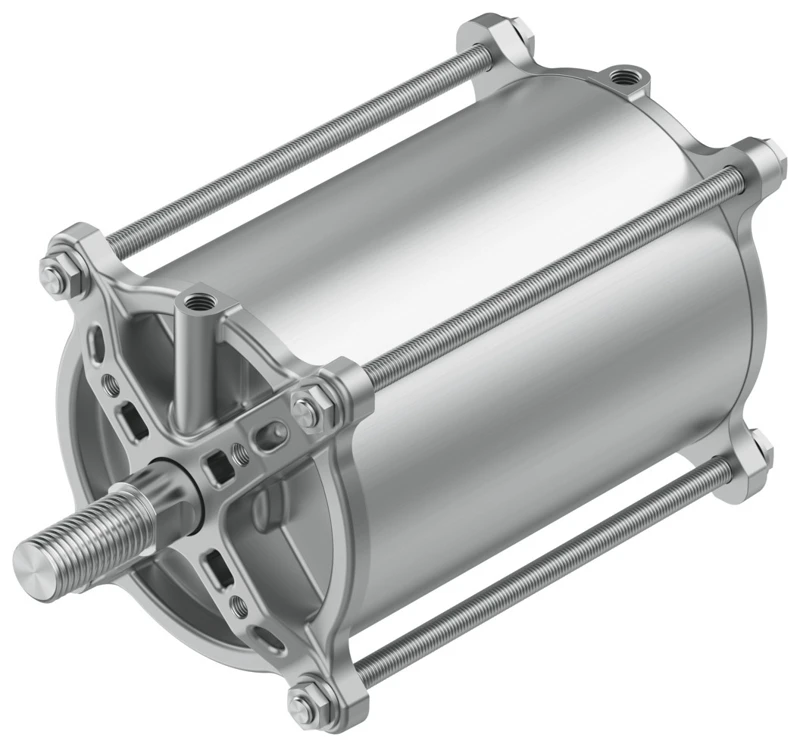

Linear drive, DFPC-160-150-D-V4EX4-36E-31S-M16P-W2
SKU: 8172142
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear actuator DFPC
• Size of valve actuator 160
• Flange hole pattern F10
• Stroke 150 mm
• Piston diameter 160 mm
• Fitting connection conforms to standard ISO 5210
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting
• Design Piston, Piston rod, Tie rod, Cylinder barrel
• Position detection Via proximity switch
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 12064 N
Buy currently uses Select Automation shop pricing and checkout.
Linear actuator DFPC
• Robust and corrosion-resistant tie-rod design
• Ideal for use in harsh ambient conditions
• Numerous configuration options
• Variants with fastening interface in accordance with ISO 5210 or ISO 15552 with extended tie rods
