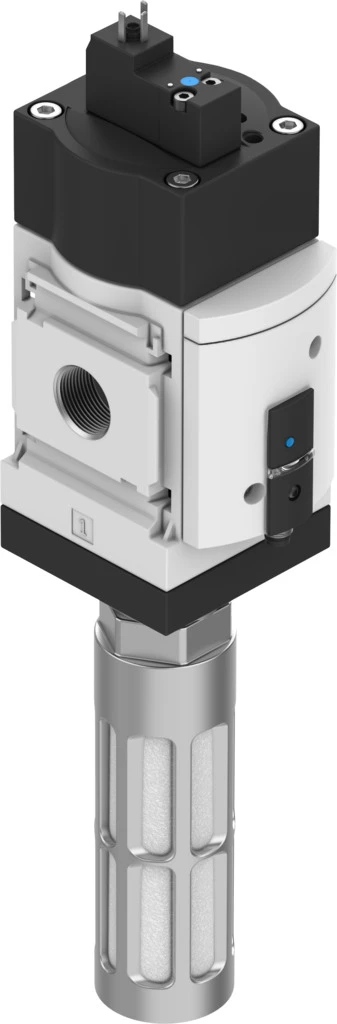

Soft-start/quick exhaust valve, MS6-SV-1/2-C-10V24-S-AD7
SKU: 8172785
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start/quick exhaust valves MS-SV, MS series
• Series MS
• Size 6
• Grid dimension 62 mm
• Safety function Exhaust, Prevention of unexpected start-up (pressurisation)
• Performance Level (PL) Exhausting/category 1, performance level c, Prevention of unexpected start-up (pressurisation)/category 1, performance level c
• Note on forced dynamization Switching frequency min. 1/month
• Design Piston gate valve
• Lap Overlap
• Type of actuation Electric
• Pilot air supply Internal
• Sealing principle Soft
• Exhaust-air function Without flow control option
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 5700 l/min
• Operating pressure 3 bar - 10 bar
Buy currently uses Select Automation shop pricing and checkout.
Soft-start/quick exhaust valve, configurable MS6-SV
• Our soft start/quick exhaust valves MS6-SV cut off the power to critical components in the blink of an eye when an emergency stop is triggered.
• They also restart the system just as gently and reliably once the problem has been eliminated.
• Grid dimension 62 mm
• With safety functions
• For reducing pressure quickly and reliably and for building up pressure gradually
• Adjustable pressure build-up time
• Adjustable switch-through pressure
• Supply voltage 24 V DC
