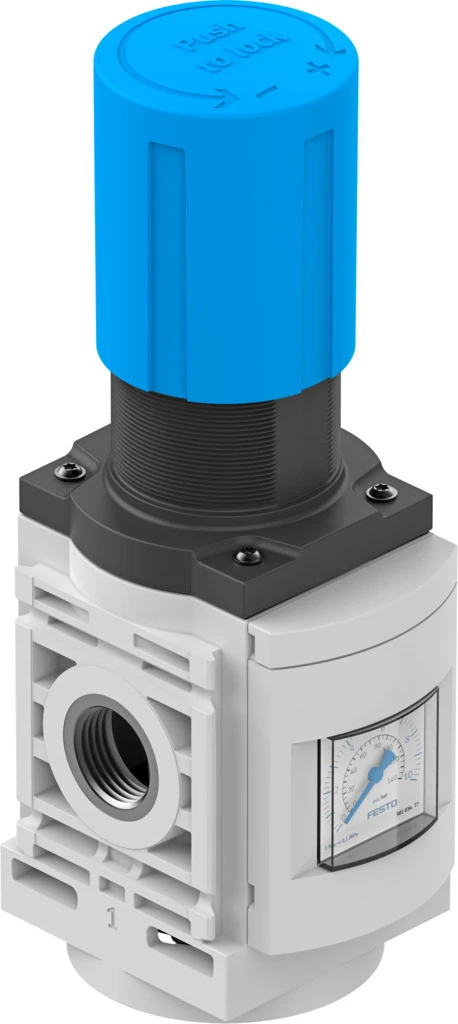

Pressure regulator, MS6-LR-1/2-D6-AG-BAR-F1A-B
SKU: 8175354
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure regulator MS-LR-B
• Size 6
• Series MS
• Actuator lock Rotary knob with detent
• Mounting position optional
• Design Pressure regulator with pressure gauge, Directly actuated piston regulator
• Controller function Output pressure constant, With secondary venting, With return flow function
• Symbol 00991558
• Displayable units bar, psi
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Operating pressure 0.1 MPa ... 1 MPa
• Operating pressure 1 bar ... 10 bar
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 6000 l/min
• Pressure regulation range 0.3 bar - 7 bar
• Max. pressure hysteresis 0.35 bar
Buy currently uses Select Automation shop pricing and checkout.
Pressure regulator MS-LR-B
• Grid dimension 25, 40, 62 mm
• Competitively priced basic component focused on the most important technical functions
• Lightweight and sturdy thanks to modern polymer materials
• Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements
• Stabile control response
• With or without pressure gauge
• Rotary knob with latch
• With integrated secondary exhausting and primary exhausting with return flow function
• MS2: Directly operated diaphragm regulator
• MS4, MS6: directly actuated piston regulator
• Sustainable operation thanks to reduced pressure level
