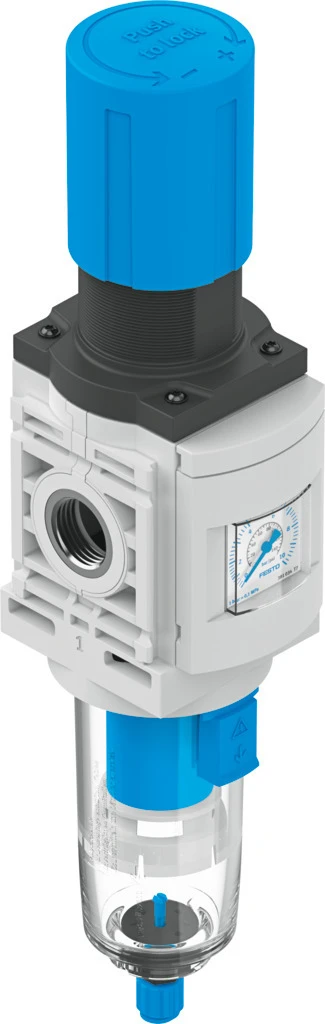

Filter regulator, MS6-LFR-1/2-D6-C-P-M-AG-BAR-F1A-B
SKU: 8175823
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulator MS-LFR-B
• Size 6
• Series MS
• Actuator lock Rotary knob with detent
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge, Directly actuated piston regulator
• Max. condensate volume 27.3 ml
• Controller function Output pressure constant, With secondary venting, With return flow function
• Symbol 00991589
• Displayable units bar, psi
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 4750 l/min
• Pressure regulation range 0.3 bar - 7 bar
• Max. pressure hysteresis 0.35 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS-LFR-B
• For regulating and filtering compressed air, it is extremely light, very compact yet has a powerful flow rate and comes in a polymer housing.
• It has low-cost, basic components focused on the most important technical functions.
• Grid dimension 25, 40, 62 mm
• Competitively priced basic component focused on the most important technical functions
• Lightweight and sturdy thanks to modern polymer materials
• Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements
• Stabile control response
• With or without pressure gauge
• Rotary knob with latch
• With integrated secondary exhausting and primary exhausting with return flow function
• MS2: Directly operated diaphragm regulator
• MS4, MS6: directly actuated piston regulator
