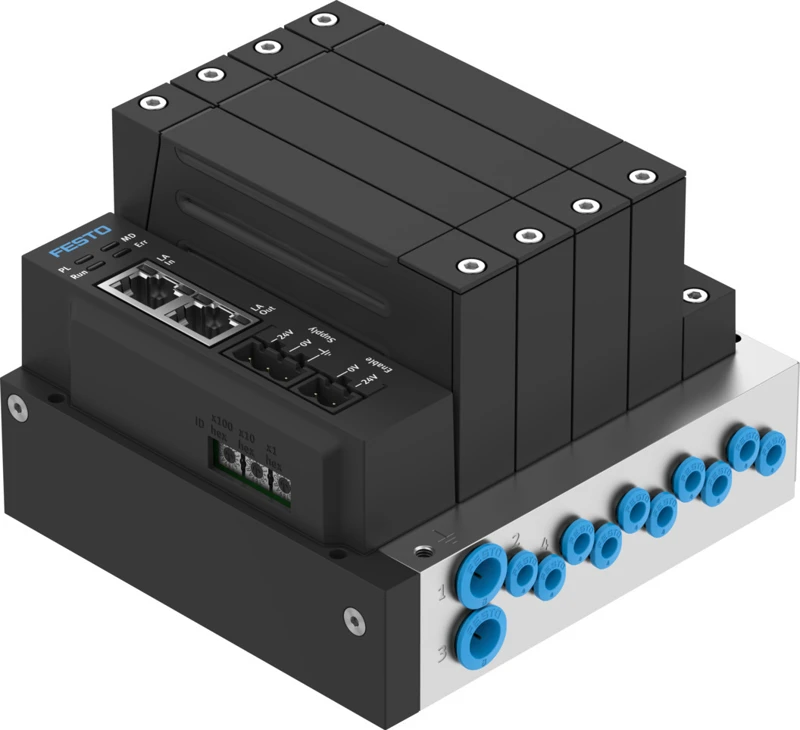

Valve terminal, VTEP-

Specifications • Valve terminal VTEP • Valve terminal structure Fixed grid • Grid dimension 16 mm • Max. number of valve positions 5 • Dimensions (W x L x H) 119 mm x 110 mm x 82 mm, 71 mm x 110 mm x 82 mm, 87 mm x 110 mm x 82 mm • Max. number of pressure zones 1 • Degree of protection IP20 • LABS (PWIS) conformity VDMA24364 zone III • Pneumatic connection, port 1 For tubing outer diameter of 8 mm • Pneumatic connection, port 2 For tubing outside diameter of 4 mm • Pneumatic connection, port 3 For tubing O.D. 8 mm • Pneumatic connection, port 4 For tubing O.D. 4 mm • Valve function 3-way proportional-pressure regulator, closed • Type of actuation Electric • Sealing principle Soft • Standard flow rate (standardised to DIN 1343) 18 l/min ... 42 l/min • Flow direction Non-reversible • Suitability for vacuum yes • Reverse polarity protection For all electrical connections
