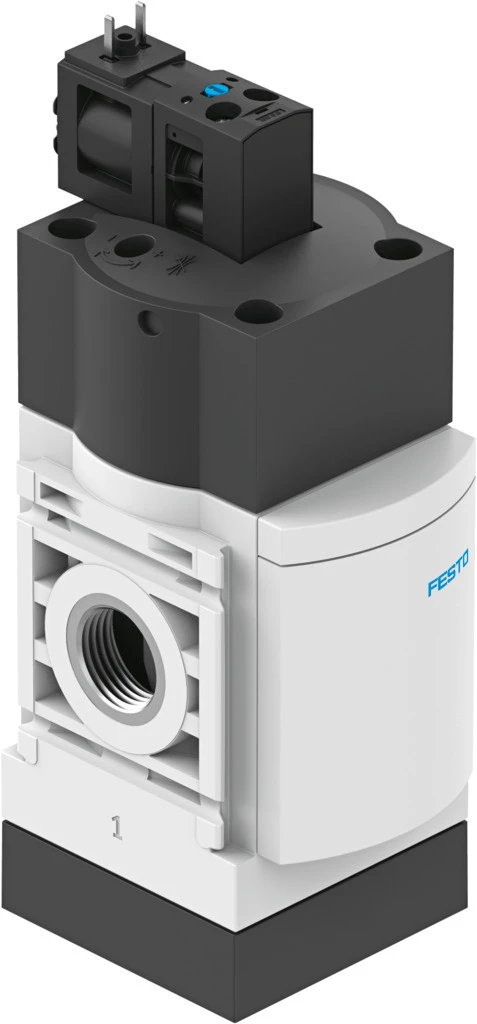

On/off valve, MS6-EE-1/2-V24-F1A-B
SKU: 8176514
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• On/off valve MS-EE-B
• Series MS
• Size 6
• Grid dimension 62 mm
• Design Poppet valve, electrically actuated
• Type of actuation Electric
• Exhaust-air function Without flow control option
• Manual override Detenting, Non-detenting
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Symbol 00991008
• Valve function 3/2-way, closed, monostable
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure sensor with LCD display
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 5000 l/min
Buy currently uses Select Automation shop pricing and checkout.
On/off valve MS-EE-B
• All compressed air preparation functions: pressure control, switch-on, filter regulators and soft-start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Very compact and extremely lightweight series for use close to the process directly in the machine
• Electrically operated 3/2-way valve for pressurising and exhausting pneumatic systems
• Ducted exhaust air possible via threaded connection with silencer
• Detenting and non-detenting manual override
• Supply voltage 24 V DC
• With solenoid coil, without plug socket
• Variants recommended for production systems for manufacturing lithium-ion batteries
