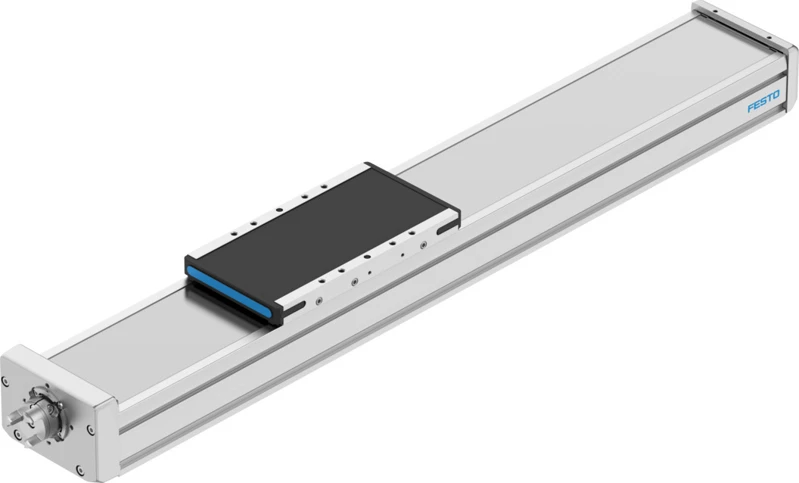

Ball screw axis, ELGD-BS-KF-WD-100-...
SKU: 8176878
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball screw axis ELGD-BS-KF-WD
• Working stroke 50 mm ... 1000 mm
• Size 100
• Stroke reserve 0 mm
• Reversing backlash theoretical 150 µm
• Spindle diameter 10 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw drive
• Max. feed force Fx 1100
• Repetition accuracy ±0.01 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis ELGD-BS-KF-WD
• Reduced profile heights offer smaller installation dimensions for handling systems and applications that do not require such high feed forces
• For applications requiring precision
• High reliability and long service life
• For high loads
• 30% lighter, while rigidity and guide load capacity are still similar to the axis in the standard design
