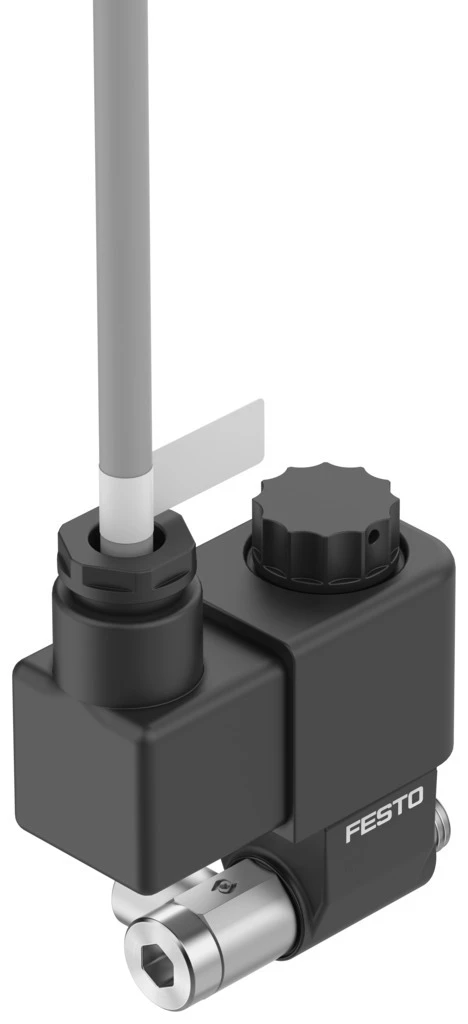

Pilot valve, VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M

Specifications • Pilot valve VOFX • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 22 mm • Standard nominal flow rate (standardised to DIN 1343) 50 l/min • Pneumatic working port G1/8 • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 0.8 MPa • Operating pressure -0.9 bar ... 8 bar • Operating pressure -13.05 psi ... 116 psi • Design Directly actuated poppet valve • Type of reset Mechanical spring • Degree of protection IP65
