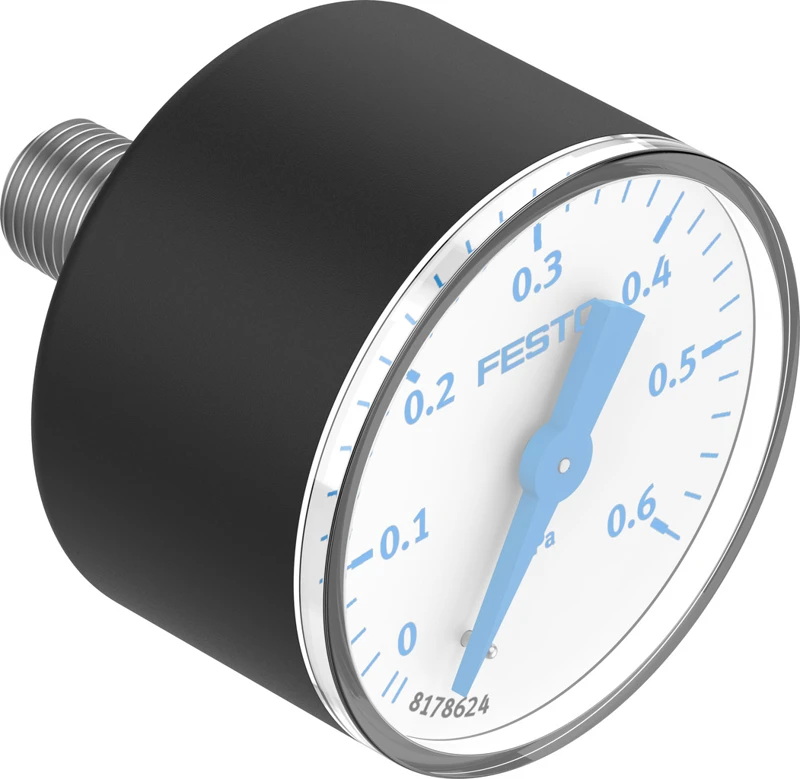

Pressure gauge, PAGN-40-0.6M-R18-1.6-CPA
SKU: 8178624
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure gauge PAGN
• Indicating range 0 MPa ... 0.6 MPa
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 40
• Design Bourdon tube pressure gauge
• Type of mounting In-line installation
• Operating medium Inert gases, Neutral fluids
• Operating pressure 0 MPa ... 0.6 MPa
• Operating pressure 0 bar ... 6 bar
• Operating pressure 0 psi ... 87 psi
• Alternating load factor 0.66
• Measurement accuracy class 1.6
• Degree of protection IP43
• Storage temperature -40 °C ... 70 °C
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge PAGN
• Pressure gauge to DIN EN 837-1 for attaching to a push-in fitting with display range up to 16 bar/230 psi.
• Designs based on EN 837-1
• Display units bar, psi, Mpa
