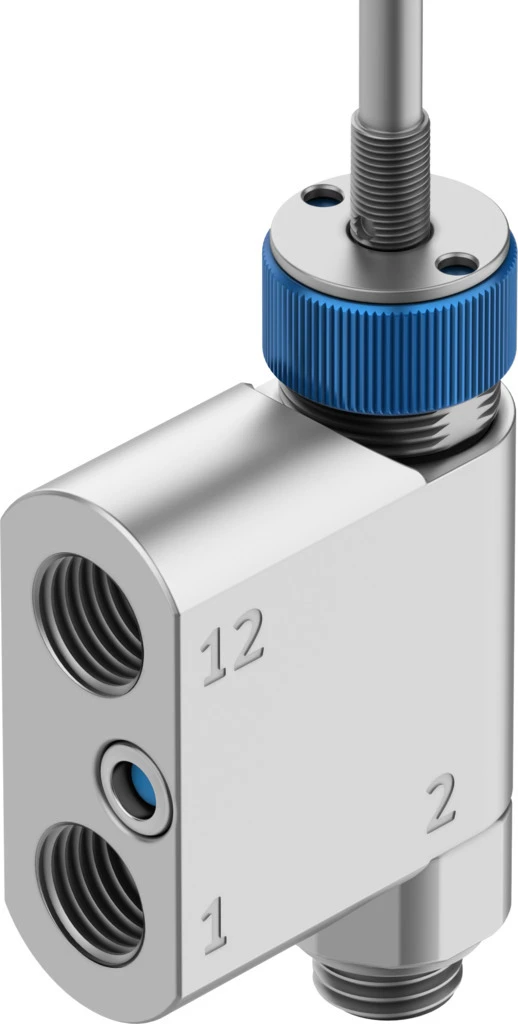

Shut-off valve, VBOC-L2-S7-P-M8-G18-E

Specifications • Shut-off valve VBOC • Basic valve with exhaust function • Valve function 2/2-way, closed, monostable • Pneumatic connection, port 1 G1/8 • Pneumatic connection, port 2 G1/8 • Type of actuation Pneumatic • Type of mounting Screw-in, Via male thread • Nominal flow rate standardised according to ISO 8778 290 l/min • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) in according to ISO 8778 500 l/min • Nominal flow rate 2->1 normalised according to ISO 8778 330 l/min • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 according to ISO 8778 500 l/min • Operating pressure 0.05 MPa ... 1 MPa • Operating pressure 0.5 bar ... 10 bar • Ambient temperature -5 °C ... 60 °C • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
