Motor cable, NEBM-LX/M17-
SKU: 8181663
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Connecting cable NEBM
• See datasheet for available configurations
• Based on standard EN 61984
• Cable designation Without inscription label holder
• Product weight 365 g ... 1880 g
• Electrical connection 12-pin, 14-pin
• Electrical connection 1, function Field device side
• Electrical connection 1, design Angular, Round
• Electrical connection 1, connection type Hybrid socket
• Electrical connection 1, cable outlet Straight
• Electrical connection 2, function Controller side
• Electrical connection 2, connection type Socket Cable
• Electrical connection 2, cable outlet Straight
• Electrical connection 2, connector system Plug pattern L10, Plug pattern L5, M17x0.75, Open end
• Cable length 0.5 m ... 20 m
Buy currently uses Select Automation shop pricing and checkout.

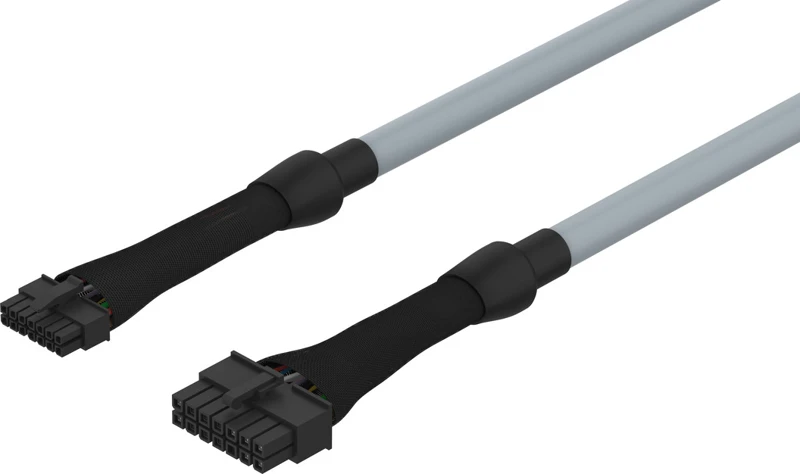

Connecting cable NEBM
• The right plug connection every time with connecting cables NEBM for servo motors, stepper motors, motor controllers and servo drives from Festo.
• For stepper and servo motors
• For motor controllers CMMS-ST, CMMP-AS
• Can be used in a wide temperature range
• Suitable for use with energy chains
