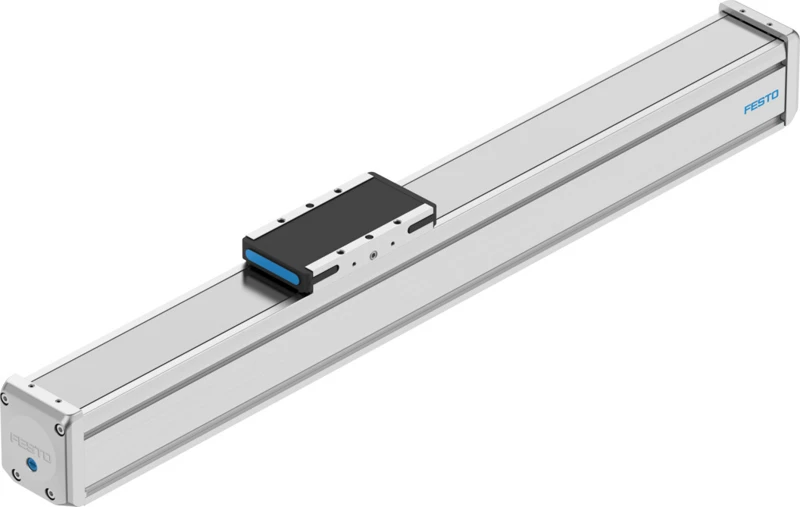

Guide axis, ELFD-KF-60-...
SKU: 8182487
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guide axes ELFD
• Size 60
• Stroke reserve 4.5 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Symbol 00992984
• Max. acceleration 50 m/s²
• Max. speed 3 m/s
• Duty cycle 100%
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP30
• Ambient temperature 0 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Guide axes ELFD
• Driveless linear guide units with guide and freely movable slide
• The guide axis is designed to support forces and torques in multi-axis applications
• Innovative guide technology
• Excellent rigidity and load capacity of the guide for greater loads in the same installation space
• Less vibration and smoother slide movement protect sensitive workpieces
• Innovative stainless steel cover strip solution
• Abrasion-free and clean surface protects workpieces from particles
• Minimised number of particles for use in cleanrooms
• Reduced ingress of dirt for use in harsh ambient conditions
• Extended or additional slide for higher axial and lateral torques and higher loads
