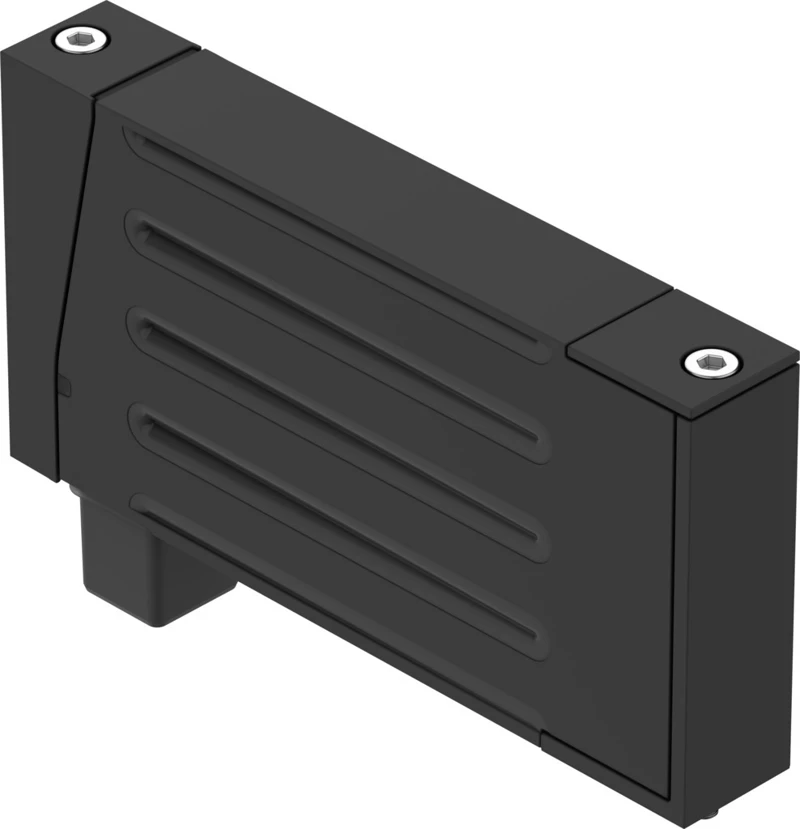

Piezo valve, VEVP-XA-4-B-T32C-F-D31-2
SKU: 8184034
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTEP
• Accessories, Piezo valve, individual
• Grid dimension 16 mm
• Valve function 3-way proportional-pressure regulator, closed
• Design Sub-base valve
• Sealing principle Soft
• Type of actuation Electric
• Suitability for vacuum yes
• Flow direction Non-reversible
• Standard flow rate (standardised to DIN 1343) 42 l/min
• Degree of protection IP65
• LABS (PWIS) conformity VDMA24364 zone III
• Pneumatic connection, port 1 Flange
• Pneumatic connection, port 2 Flange
• Pneumatic connection, port 3 Flange
• Pneumatic connection, port 4 Flange
Buy currently uses Select Automation shop pricing and checkout.
Piezo valve VEVP
• The valve VEVP offers precise pressure control with minimal power consumption.
• It has been specially developed for the valve terminal VTEP and has four piezo valves in a bridge circuit.
• This enables standard and low pressure applications to be precisely controlled.
• Developed for valve terminal VTEP
• High precision with very low power consumption
• Valve status indication via LED
• 4 piezo valves in a bridge circuit for precise control
• Available in two versions:Standard and low pressure
• Easy to replace thanks to screw mounting on the connecting plate
