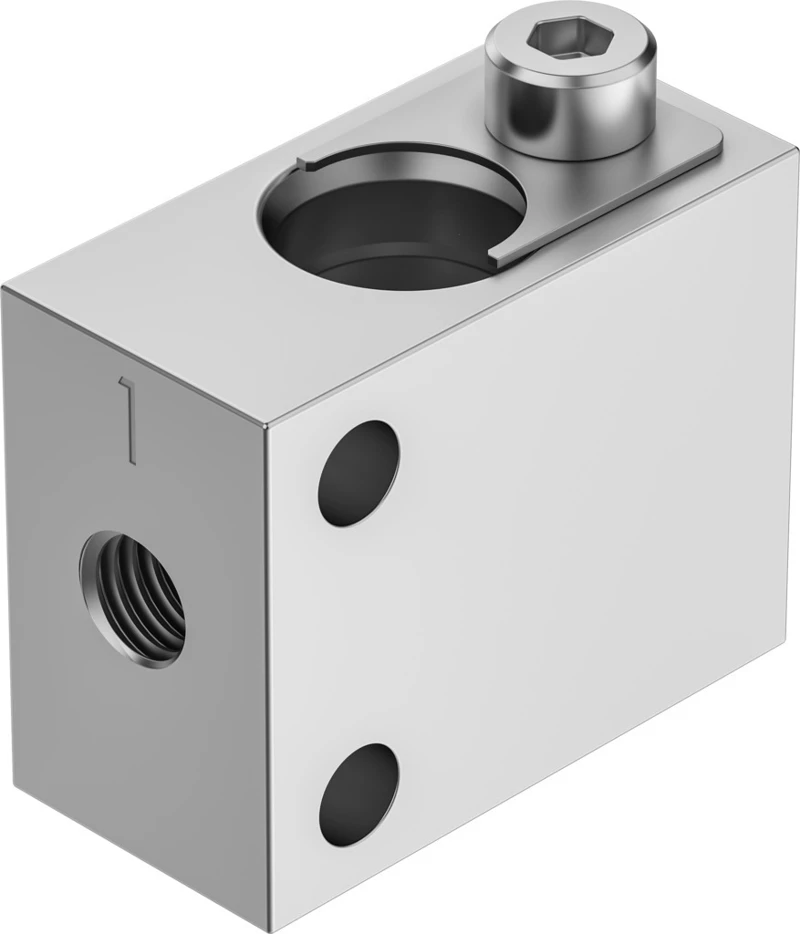

Manifold block, VABS-P4-8S-M5

Specifications • Proportional directional control valves VPWS • Accessories, Manifold block • Construction width 12 mm • Mounting position optional • Design Connection direction at side • Max. number of valve positions 1 • Operating pressure 0 bar ... 10 bar • Operating medium Inert gases, Air • Note on operating and pilot medium Lubricated operation not possible, Maximum particle size 10 µm • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Pneumatic connection, port 1 M5 • Material sub-base Anodised wrought aluminium alloy
