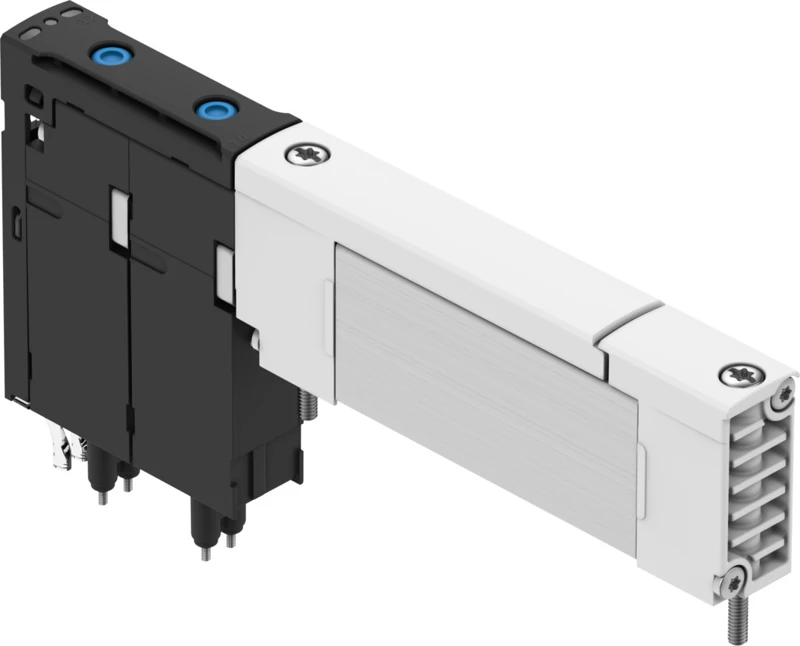

Solenoid valve, VUVX-BK10-B52-ZH-F-1T1L

Specifications • Valve terminal VTUX • Accessories, Individual solenoid valve – Valve size 10 mm  • Valve function 5/2 double solenoid • Type of actuation Electric • Valve size 10 mm • Nominal flow rate standardised according to ISO 8778 730 l/min • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 0.7 MPa • Operating pressure -0.9 bar ... 7 bar • Design Piston slide with sealing ring • Degree of protection IP65 • Width 10.35 mm • Nominal size 4.2 mm
