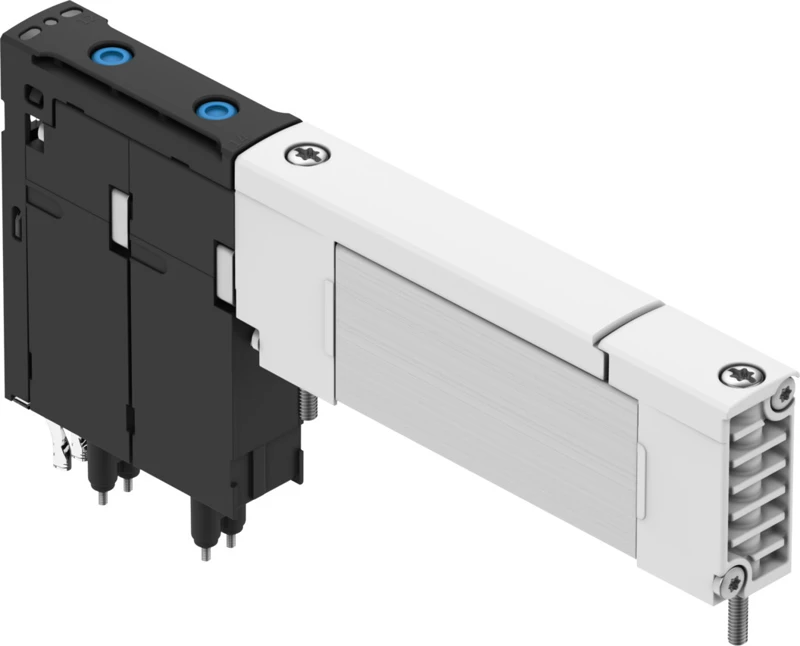

Solenoid valve, VUVX-BK10-T32C-A1ZH-F-1T1L

Specifications • Valve terminal VTUX • Accessories, Individual solenoid valve – Valve size 10 mm  • Valve function 2x3/2-way, monostable, closed • Type of actuation Electric • Valve size 10 mm • Nominal flow rate standardised according to ISO 8778 600 l/min • Operating voltage 24V DC • Operating pressure 0.15 MPa ... 0.7 MPa • Operating pressure 1.5 bar ... 7 bar • Design Piston slide with sealing ring • Type of reset Pneumatic spring • Degree of protection IP65 • Width 10.35 mm • Nominal size 3.8 mm
