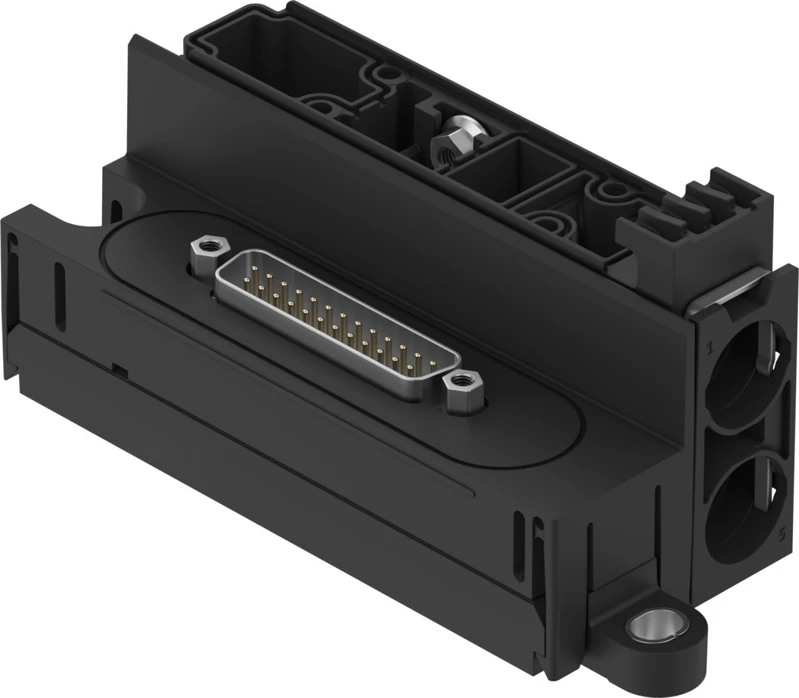

Manifold sub-base, VABX-A-P-EL-E12-MS1-SHUH

Specifications • Valve terminal VTUX • Accessories, Manifold sub-base • Size 1, 2 • Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 • Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 • Position of connection From the side • Valve terminal structure Valve sizes can be mixed • Max. number of valve coils 24 • Compatible with Valve terminal VTUX-A-P • Dimensions (W x L x H) 45,6 mm x 117,4 mm x 53,9 mm
