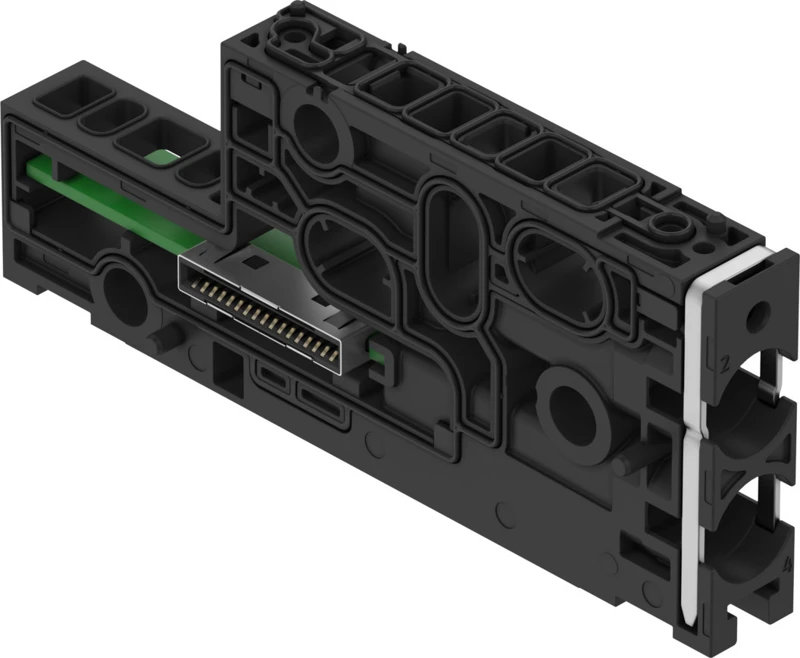

Manifold sub-base, VABX-A-P-BV-BH-B

Specifications • Valve terminal VTUX • Accessories, Manifold sub-base – For one valve • Size 2 • Grid dimension 12.55 mm • Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 • Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 • Integrated function With electrical interlinking module • Max. number of valve positions 1 • Flow direction Reversible • Max. number of valve coils 2 • Compatible with Valve terminal VTUX-A-P • Suitability for vacuum yes • Nominal flow rate standardised according to ISO 8778 690 l/min • Dimensions (W x L x H) 12.55 mm x 104.3 mm x 43.1 mm
