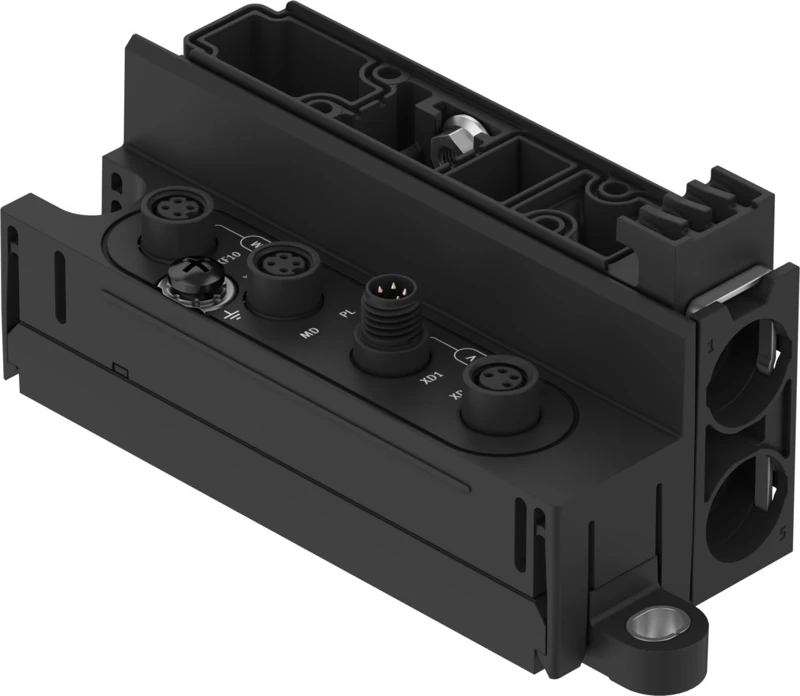

Manifold sub-base, VABX-A-P-EL-E12-API-SHUH

Specifications • Automation system CPX-AP-I • Manifold sub-base for valve terminal VTUX • Size 1, 2 • Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN, 60068-2-6 • Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 • Communication interface, plug pattern 00995937 • Position of connection From the side • Reverse polarity protection yes • Diagnostics via LED Diagnostics per module, Load power supply • Diagnostics per internal communication Load switch-off • Electronics/sensors overvoltage • Electronics/sensors undervoltage • Valve terminal structure Valve sizes can be mixed • Max. number of valve coils 32
