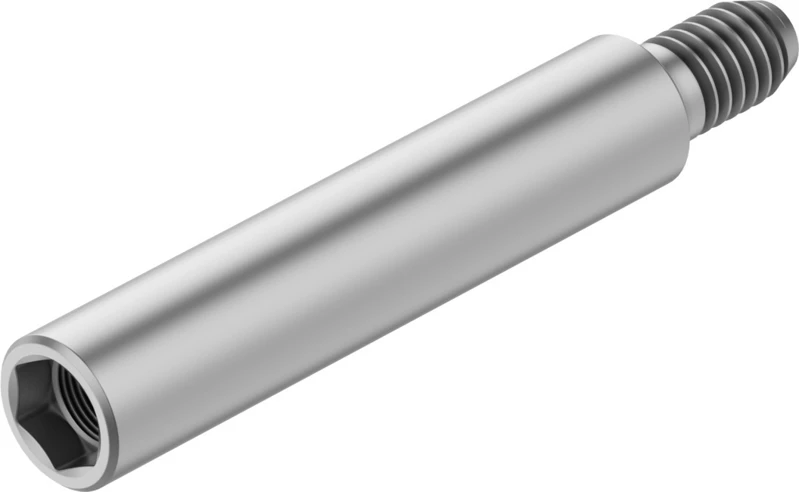

Tie rod, VAME-XA-Z-130
SKU: 8191764
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTUX
• Accessories, Mounting, Tie rod
• Length 130 mm
• Size of pack 3
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Nominal torque 1.4 Nm
• Tolerance for nominal tightening torque ± 15%
• Product weight 80.1 g
• Type of mounting Internal hexagon, size 4 mm, With male thread M4, with female thread M4
• Note on materials RoHS-compliant
• Material tie rod High-alloy stainless steel
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Valve terminal VTUX
• Accessories, Mounting, Tie rod
• Length 130 mm
• Size of pack 3
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Nominal torque 1.4 Nm
• Tolerance for nominal tightening torque ± 15%
• Product weight 80.1 g
• Type of mounting Internal hexagon, size 4 mm, With male thread M4, with female thread M4
• Note on materials RoHS-compliant
• Material tie rod High-alloy stainless steel
