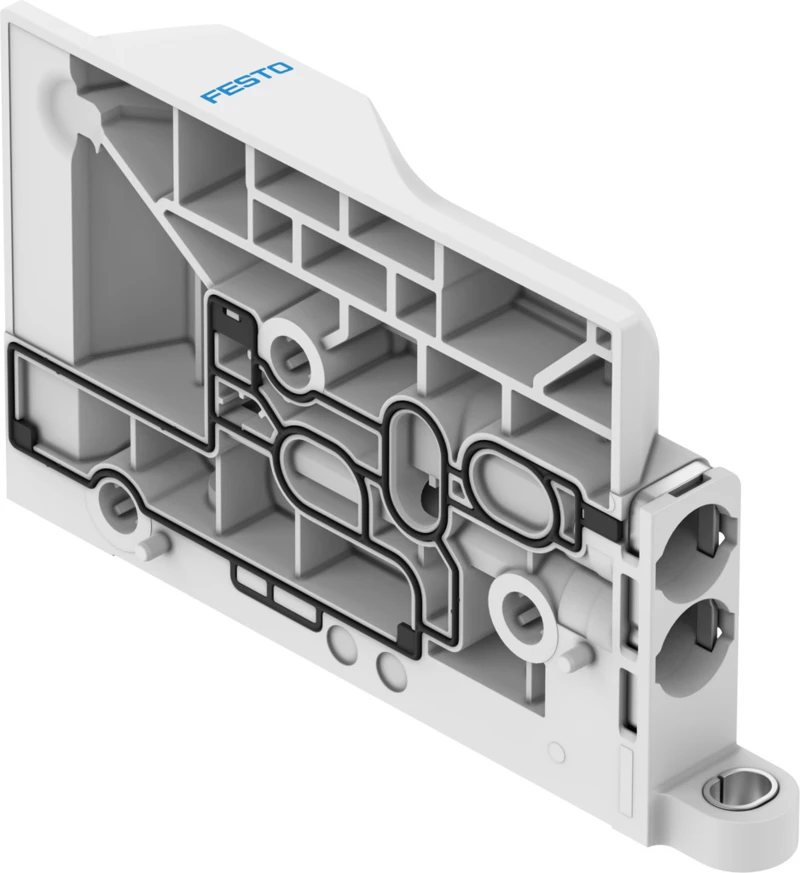

Manifold sub-base, VABX-A-ER-E12-JHTH-XR

Specifications • Valve terminal VTUX • Accessories, Manifold sub-base • Integrated function Pilot air selector for defining the pilot air supply (internal or external) • Flow direction Reversible • Compatible with Valve terminal VTUX-A-P, Valve terminal VTUX-A-S • Suitability for vacuum yes • Dimensions (W x L x H) 15.05 mm x 104.3 mm x 66.55 mm • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Storage temperature -20 °C ... 70 °C • Ambient temperature -5 °C ... 50 °C • Max. tightening torque wall mounting 6 Nm • Product weight 57.9 g • Mounting method for sub-base With through-hole
