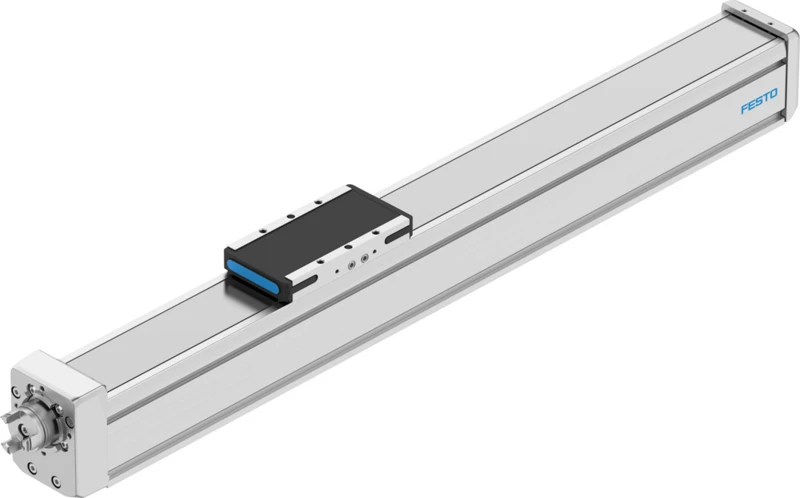

Ball screw axis, ELGD-BS-KF-60-300-0H-10P
SKU: 8192262
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball screw axis ELGD-BS
• Working stroke 300 mm
• Size 60
• Stroke reserve 0 mm
• Reversing backlash theoretical 150 µm
• Spindle diameter 12 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw drive
• Max. feed force Fx 1550 N
• Repetition accuracy ±0.01 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis ELGD-BS
• For applications requiring precision
• High reliability and long service life
• For high loads
• Excellent rigidity and load capacity of the guide for greater load in the same installation space
