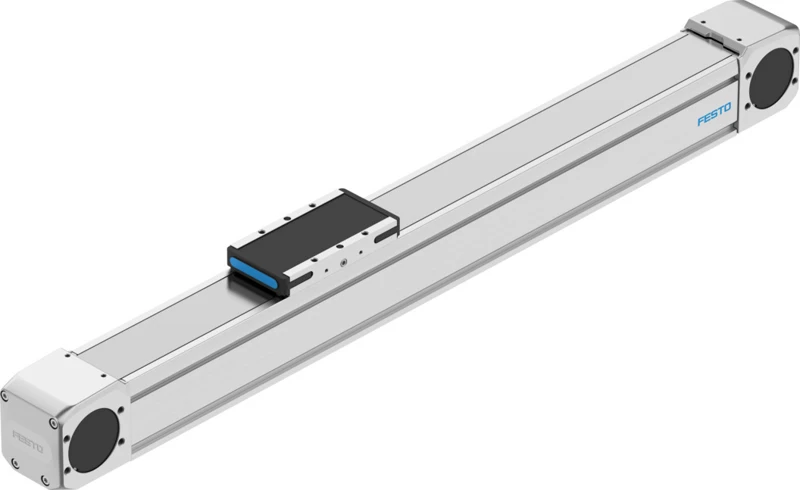

Toothed belt axis, ELGD-TB-KF-60-800-0H-PU2
SKU: 8192348
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGD-TB
• Effective diameter of drive pinion 31.51 mm
• Working stroke 800 mm
• Size 60
• Stroke reserve 0 mm
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Max. feed force Fx 350 N
• Repetition accuracy ±0.04 mm
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis ELGD-TB
• For applications requiring a high dynamic response and short positioning times
• For long strokes
• Excellent rigidity and load capacity of the guide for greater load in the same installation space
