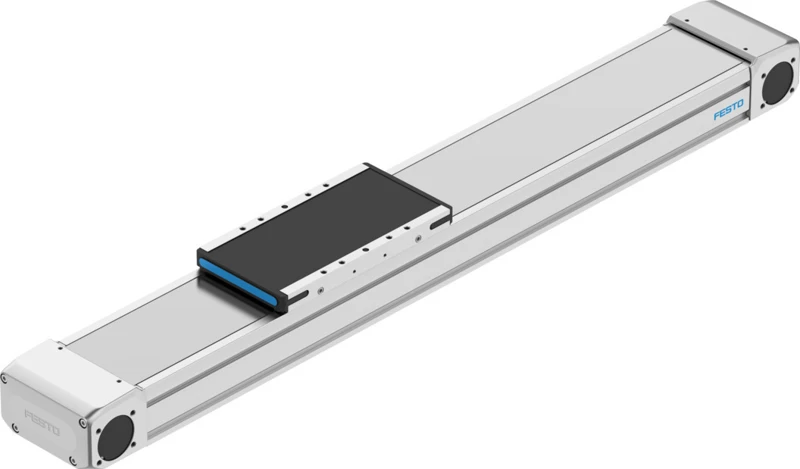

Toothed belt axis, ELGD-TB-KF-WD-100-1800-0H-L-PU2
SKU: 8192382
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGD-TB-WD
• Effective diameter of drive pinion 26.74 mm
• Working stroke 1800 mm
• Size 100
• Stroke reserve 0 mm
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991213
• Functional principle of measuring system Incremental
• Position detection Via inductive sensors
• Max. feed force Fx 240 N
• Repetition accuracy ±0.04 mm
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis ELGD-TB-KF-WD
• Reduced profile heights offer smaller installation dimensions for handling systems and applications that do not require such high feed forces
• For applications requiring a high dynamic response and short positioning times
• For long strokes
• 30% lighter, while rigidity and guide load capacity are still similar to the axis in the standard design
