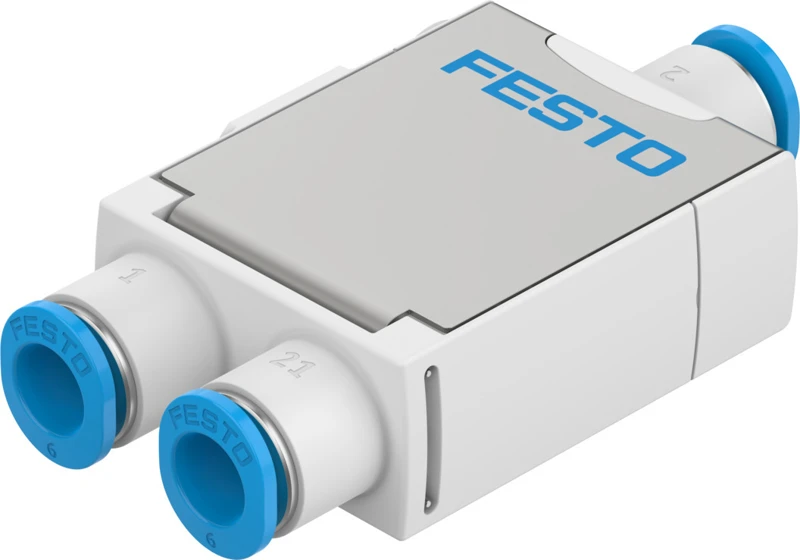

One-way flow control valve, VFOF-CE-BAH-Q6-Q6
SKU: 8193267
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valve VFOF
• Valve function Exhaust air one-way flow control function
• Selection of additional functions Actuated non-return valve
• Pneumatic connection, port 1 QS-6
• Pneumatic connection, port 2 QS-6
• Type of actuation Manual
• Pilot air port 21 QS-6
• Standard nominal flow rate in flow control direction 240 l/min
• Standard nominal flow rate in blocked direction 400 l/min ... 460 l/min
• Operating pressure ≤1 MPa
• Operating pressure ≤10 bar
• Operating pressure ≤145 psi
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve VFOF
• Flat, rotatable shut-off valve with possible supply/exhaust air flow control combination.
• Functional combination of one-way flow control valve and piloted check valve
• High flow rate
• Can be rotated horizontally through 360° in assembled state
• Compact and can be operated from the side
