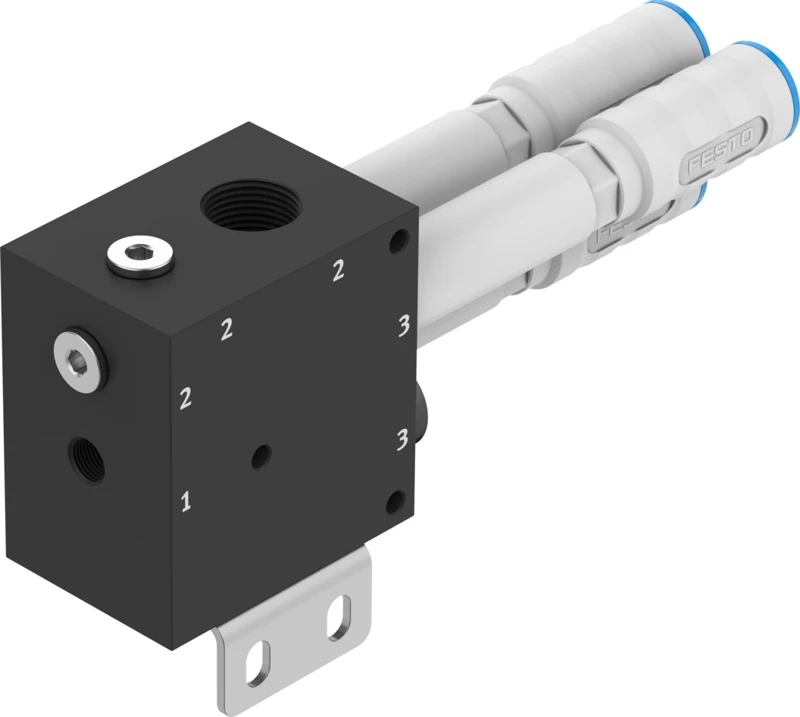

Vacuum generator, OVPN-23-L3-PG14-G34-UA
SKU: 8199148
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generator OVPN
• Nominal size, Laval nozzle 2.3 mm
• Grid dimension 60 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic High suction rate
• Integrated function Open silencer
• Design Vacuum generator, 3-stage
• Symbol 00991489
• Operating pressure for max. suction flow rate 0.8 MPa
• Operating pressure for max. suction flow rate 8 bar
• Operating pressure for max. suction flow rate 116 psi
• Operating pressure 0.1 MPa ... 0.8 MPa
• Operating pressure 1 bar ... 8 bar
• Max. vacuum 81 %
• Max. suction flow rate against atmosphere 748 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator OVPN
• The multi-stage pneumatic vacuum generator OVPN is a vacuum generator for applications with high flow rates at low vacuum.
• Vacuum generator with very high suction capacity ideal for porous materials
• Nozzle technology with maximum energy efficiency
• High initial suction rate
• Reduced sound pressure level thanks to an integrated, open silencer
• Can be used flexibly for centralised or decentralised vacuum generation
• Very lightweight
• Sustainable operation thanks to optimised air consumption
