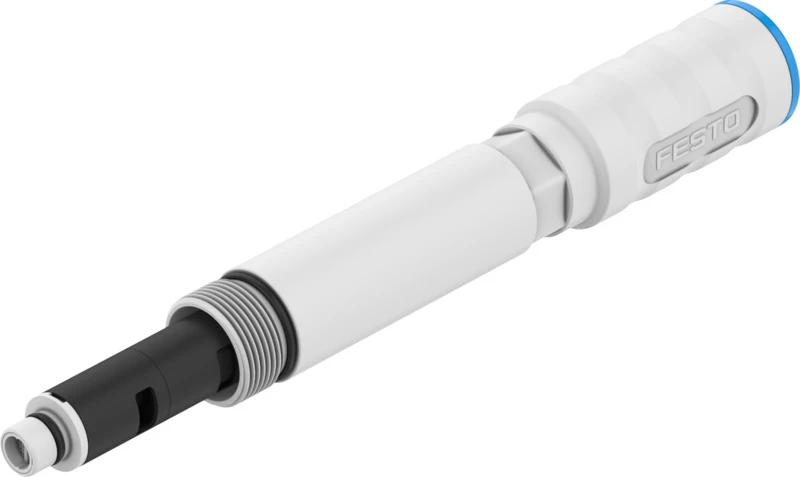

Vacuum generator cartridge, OASP-G4-14-L3-UA
SKU: 8199155
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generator cartridge OASP
• Nominal size, Laval nozzle 1.4 mm
• Silencer design Open
• Ejector characteristic High suction rate
• Integrated function Open silencer
• Design Vacuum generator, 3-stage
• Symbol 00991489
• Operating pressure for max. suction flow rate 0.8 MPa
• Operating pressure for max. suction flow rate 8 bar
• Operating pressure for max. suction flow rate 116 psi
• Operating pressure 0.1 MPa ... 0.8 MPa
• Operating pressure 1 bar ... 8 bar
• Operating pressure 14.5 psi ... 116 psi
• Operating pressure for max. vacuum 0.79 MPa
• Operating pressure for max. vacuum 7.9 bar
• Operating pressure for max. vacuum 114.55 psi
• Max. vacuum 81 %
• Max. suction flow rate against atmosphere 245 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator cartridge OASP
• For even faster evacuation and maximum productivity: Multi-stage vacuum generation in the housing.
• Two- or three-stage vacuum generator cartridge
• Can be integrated directly in the suction cup with connection for minimum evacuation times
• Available in the version with vacuum generator cartridge only or with retaining cap and integrated silencer
• Compact and lightweight
