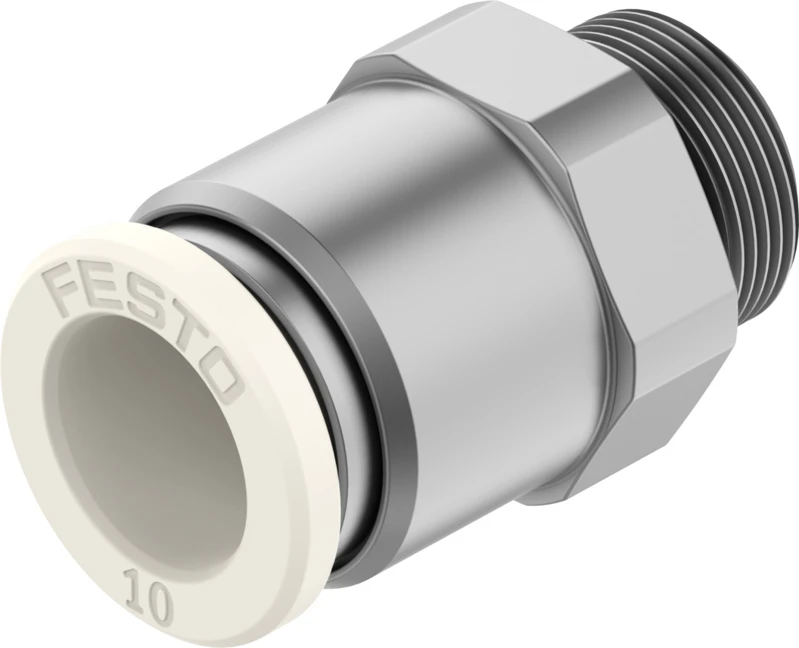

Push-in fitting, NPQO-D-G14-Q10-P5
SKU: 8203299
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mass flow controller VEMD
• Accessories, Push-in fitting, with external hex, for nominal width 6 mm
• Nominal size 7.2 mm
• Tubing insertion depth 20.1 mm
• Type of seal on screwed plug O-ring
• Mounting position optional
• Design Straight design
• Size of pack 5
• Design Push-pull principle
• Operating pressure complete temperature range -0.09 MPa ... 2 MPa
• Operating pressure complete temperature range -0.9 bar ... 20 bar
• Operating pressure complete temperature range -13.05 psi ... 290 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Carbon dioxide, Air, Oxygen, Nitrogen
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Pneumatic connection, port 1 Male thread G1/4
• Pneumatic connection, port 2 For tubing outside diameter of 10 mm
• Ambient temperature 0 °C - 120 °C
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting NPQO
• NPQO fulfils the requirements for purity and biocompatibility in accordance with the relevant standards and is perfect for your oxygen applications.
• For applications such as respiratory gases in the clinical area and in home care as well as for gases for cell nutrition, NPQO fittings and ports are your solution!
• Oxygen compatibility (in accordance with ISO 15001 and ASTM G93)
• Biocompatibility (according to ISO 18562)
• FDA-listed materials
• Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar)
• Wide range from 4 mm to 12 mm in size
• Push-in fittings and connections (straight, L-shaped, T-shaped)
