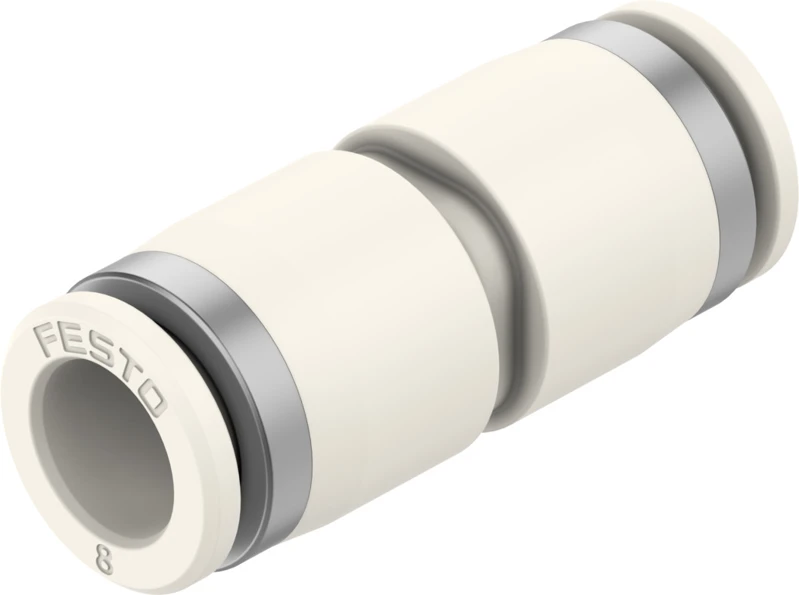

Push-in connector, NPQO-D-Q8-E-P10
SKU: 8203315
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Push-in connector NPQO-D
• Nominal size 7 mm
• Tubing insertion depth 17.85 mm
• Mounting position optional
• Design Straight design
• Size of pack 10
• Design Push-pull principle
• Operating pressure complete temperature range -0.09 MPa ... 0.3 MPa
• Operating pressure complete temperature range -0.9 bar ... 3 bar
• Operating pressure complete temperature range -13.05 psi ... 43.5 psi
• Pneumatic connection, port 1 For tubing outer diameter of 8 mm
• Pneumatic connection, port 2 For tubing outside diameter of 8 mm
• Ambient temperature 0 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting NPQO
• NPQO fulfils the requirements for purity and biocompatibility in accordance with the relevant standards and is perfect for your oxygen applications.
• For applications such as respiratory gases in the clinical area and in home care as well as for gases for cell nutrition, NPQO fittings and ports are your solution!
• Oxygen compatibility (in accordance with ISO 15001 and ASTM G93)
• Biocompatibility (according to ISO 18562)
• FDA-listed materials
• Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar)
• Wide range from 4 mm to 12 mm in size
• Push-in fittings and connections (straight, L-shaped, T-shaped)
