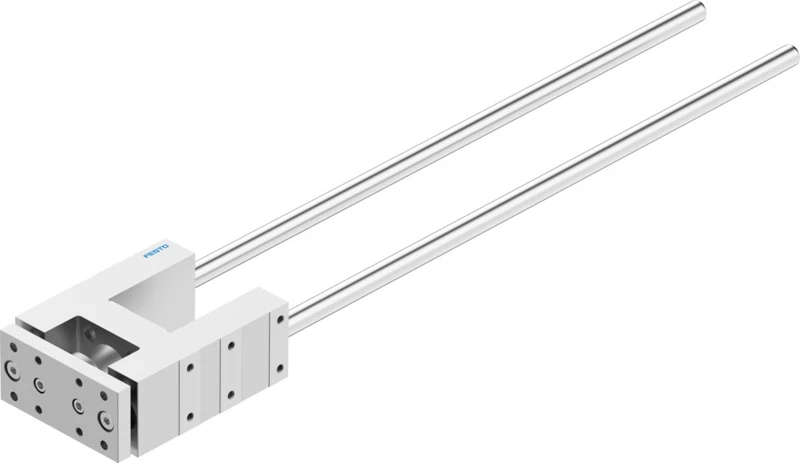

Guide unit, FENG-40-500-GF
SKU: 8204075
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guide units FEN/FENG for standards-based cylinders
• Size 40
• Stroke 500 mm
• Mounting position optional
• Guide Plain-bearing guide
• Design Guidance
• Explosion protection The information in the certificate must be observed!
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -20 °C ... 80 °C
• Displacement force 30 N
• Moving mass 2332 g
• Product weight 4030 g
• Type of mounting Via female thread
Buy currently uses Select Automation shop pricing and checkout.
Guide unit, metric FENG
• At high torques, ISO cylinders DSBC DSBG DNC are protected against rotation.
• For protecting standards-based cylinders against rotation at high torque loads
• Plain or recirculating ball bearing guide
• High guide precision for workpiece handling
