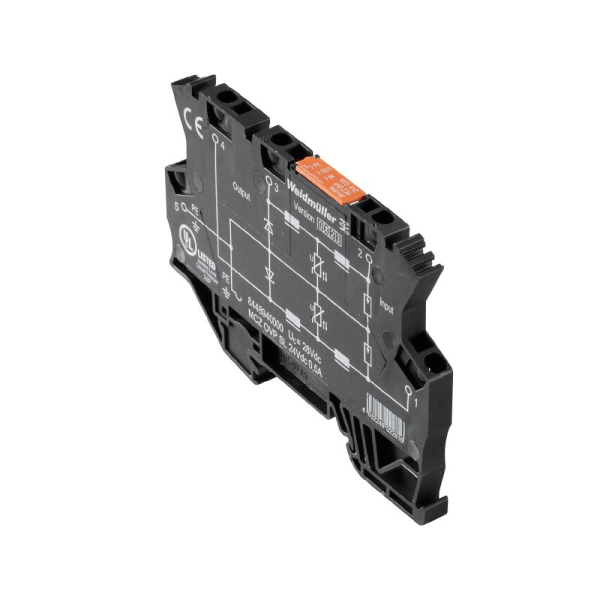

MCZ OVP SL 24VDC 0 5A
SKU: 8448940000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
MCZ OVP SL 24VDC 0,5A:
Surge protection for instrumentation and control; surge protection for measurement and control.
Tension clamp connection on slimline overvoltage protection terminal.
Six-millimetre Slimline fine overvoltage safeguard.
TS contact and tension clamp connections allow for faster wiring.
able to form cross-connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 63.5 mm.
Depth (inches): 2.5 inch.
Height: 91 mm.
Height (inches): 3.583 inch.
Width: 6 mm.
Width (inches): 0.236 inch.
Net weight: 23.7 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -40 °C - 60.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: c9db83e7-2b25-44e1-8d26-da64d426373f.
Rated data UL:
Certificate No. (UL): E311081.
General data:
Colour: black.
Design: Terminal.
Height with TS 35: 63.5 mm.
Protection degree: IP20.
Rail: TS 35.
Segment: Measurement - Monitoring - Setting.
UL 94 flammability rating: V-0.
Version: Surge protection for measurement and control.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: III.
Rated data IEC / EN:
Discharge current, Iimp (10/350 µs): 1 kA.
Discharge current, max. (8/20 µs): 5 kA.
Fuse: 0.5 A.
Inductance L and L1: 75 µH.
Lightning test current Iimp (10/350 µs): 1 kA.
Limiting frequency (-3 dB) at load resistance: 500 kHz 240 Ω.
Load resistance (for limiting frequency): 240 Ω.
Max. continuous voltage, Uc (AC): 28 V.
Operating current, Imax.: 0.5 A.
Operating voltage: 28 V.
Protection level on output side Wire-PE 1kV/µs, typically: 40 V.
Protection level on output side Wire-PE 8/20 µs, typically: 65 V.
Protection level on output side Wire-wire 1 kV/µs, typically: 80 V.
Protection level on output side Wire-wire 8/20 µs, typically: 130 V.
Rated current IN: 0.5 A.
Rated voltage (DC): 24 V.
Rated voltage (DC), max.: 28 V.
Requirements category acc. to IEC 61643-21: D1.
Response time: ≤ 100 ps.
Voltage type: DC.
Volume resistance: 2.50 Ω.
Connection data:
Cross-section: 1.5 mm².
Stripping length: 8 mm.
Wire connection method: Spring connection.
Type of connection: Tension-clamp connection.
Stripping length, rated connection: 8 mm.
Clamping range, rated connection: 1.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 1.5 mm².
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section AWG, max.: AWG 16.
Wire cross-section, solid, min.: 0.5 mm².
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
Wire cross-section, solid, max. (AWG): AWG 16.
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
Blade size: 0.6 x 3.5 mm.
