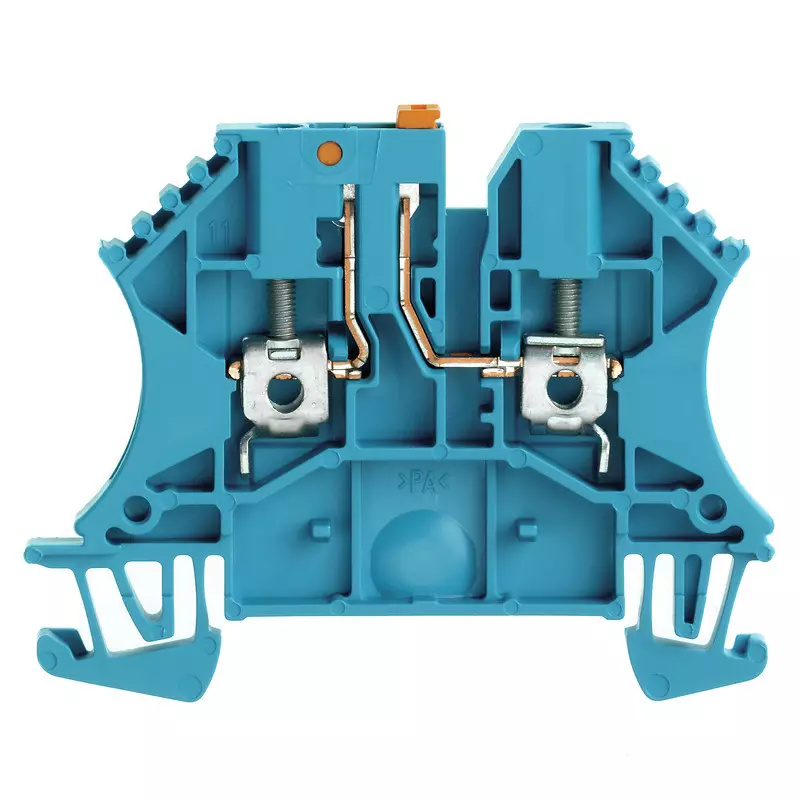

DIN Rail Terminal Blocks WTR 2.5 BL.
SKU: 8731640000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
DIN Rail Terminal Blocks WTR 2.5BL:
In some applications, it is necessary to add a test point or a disconnect element to the feed-through terminal for testing and safety reasons.
Test-disconnect terminals allow you to measure electric circuits without voltage.
The disconnecting point clearance and creepage distance are not measured in dimensional terms, but the rated impulse voltage strength must be confirmed.
Dimensions and weights:
Depth: 48 mm.
Depth including DIN rail: 49 mm.
Height: 60 mm.
Width: 5.1 mm.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temperature., minimum: -50 °C.
Continuous operating temperature, maximum: 120 °C.
Material data:
Material: Wemid.
Colour: Blue.
UL 94 flammability rating: V-0.
Buy currently uses Select Automation shop pricing and checkout.
Specifications rating data IECEx/ATEX:
Certificate No. (ATEX): DEMKO14ATEX1389U.
Certificate No. (IECEX): IECExUL14.0097U.
Maximum voltage (ATEX): 500 V.
Current (ATEX): 21 A.
Wire cross section maximum (ATEX): 2.5 mm².
Maximum voltage (IECEX): 500 V.
Current (IECEX): 21 A.
Wire cross section maximum (IECEX): 2.5 mm².
Marking EN 60079-7: Ex ec II C Gc.
Ex 2014/34/EU label: II 3 G D.
System specifications:
Version: Screw connection, Spacer, for plug-in cross-connector, One end without connector.
End cover plate required: Yes.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 35.
N-function: No.
PE function: No.
PEN function: No.
2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, maximum: 1.5 mm².
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, minimum: 0.5 mm².
Wire connection cross section, finely stranded, two clampable wires, minimum: 0.5 mm².
Wire cross-section, finely stranded, two clampable wires, maximum: 1.5 mm².
Additional technical data:
Explosion-tested version: No.
Open sides: Right.
Type of mounting: Snap-on.
CSA rating data:
Certificate No. (CSA): 154685-1152890.
Current size C (CSA): 10 A.
Voltage size C (CSA): 300 V.
Wire cross section maximum (CSA): 12 AWG.
Wire cross section minimum. (CSA): 26 AWG.
Conductors for clamping (rated connection):
Blade size: 0.6 x 3.5 mm.
Clamping range, maximum: 4 mm².
Clamping range, minimum: 0.05 mm².
Clamping screw: M 2.5.
Connection cross-section, stranded, maximum: 4 mm².
Connection cross-section, stranded, minimum: 1.5 mm².
Connection direction: on side.
Gauge to IEC 60947-1: A3.
Number of connections: 2.
Stripping length: 10 mm.
Tightening torque, maximum: 0.8 Nm.
Tightening torque, minimum: 0.4 Nm.
Torque level with DMS electric screwdriver: 1.
Type of connection: Screw connection.
Wire connection cross section AWG, maximum: AWG 12.
Wire connection cross section AWG, Minimum: AWG 30.
Wire connection cross section, finely stranded, maximum: 4 mm².
Wire connection cross section, finely stranded, minimum: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, maximum: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, minimum: 0.5 mm².
Wire connection cross-section, solid core, maximum: 4 mm².
Wire connection cross-section, solid core, minimum: 0.5 mm².
Disconnect terminals:
Without cross-disconnect.
No integral test socket.
Pivoting slitting.
General:
TS 35 rail.
Standards: IEC 60947-7-1.
Wire connection cross section AWG, maximum: AWG 12.
Wire connection cross section AWG, minimum: AWG 30.
Rating data:
Rated cross-section: 2.5 mm².
Rated voltage: 500 V.
Rated current: 24 A.
Current at maximum wires: 24 A.
Standards: IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1.33 mΩ.
Rated impulse withstands voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 0.77 W.
Pollution severity: 3.
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring maximum (UR): 12 AWG.
Conductor size Factory wiring minimum (UR): 30 AWG.
Conductor size Field wiring maximum (UR): 12 AWG.
Conductor size Field wiring minimum (UR): 30 AWG.
Current size C (UR): 20 A.
Voltage size C (UR): 600 V.
