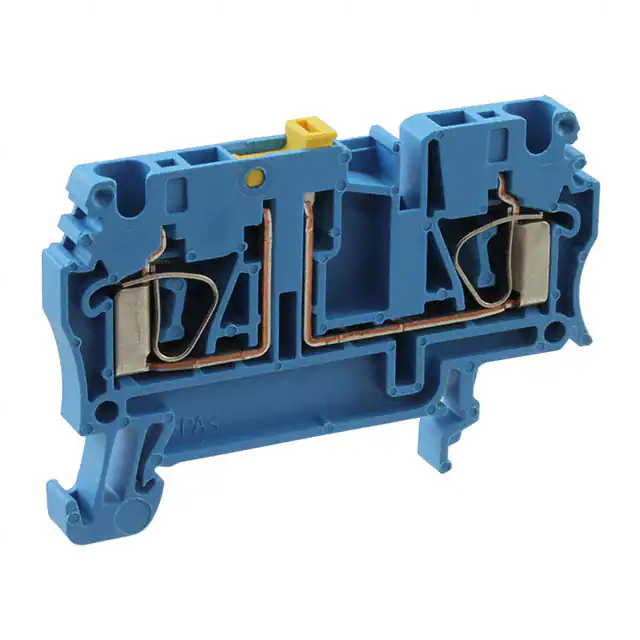

ZTR 2.5 BL

Specifications Weights and dimensions: Depth: 38.5 mm. Depth (with DIN rail included): 41 mm. Height: 59.5 mm. Width: 5.1mm. Net weight: 8.66 g. Temperatures: Storage temperature range: -25°C to 55°C. Continuous operating temperature, minimum: -50°C. Continuous operating temperature, maximum: 120 °C. Material data: Material: Wemide. Colour: blue. UL 94 flammability rating: V-0. system requirements: Version: Tension-clamp connection with spacer, plug-in cross connector, and one end without connector. End cover plate required: Yes. Number of potentials: 1. Number of levels: 1. Number of clamping points per level 2. Number of potentials per Tier: 1. Cross-connected levels internally: No. PE connection: No. Rail: TS 35. N-function: Yes. PE function: No. PEN function: No. Additional technical details: Version that has been tested for explosions: No. Installation advice: Mount directly. Number of comparable terminals: 2. Open sides: right. Mounting type: snap-on. CSA Rating Data: Certificate number (CSA): 200039-1152892. Current size C (CSA): 15 A. Current size D (CSA): 5 A. Voltage size C (CSA): 600 V. Voltage size D (CSA): 600 V. Wire cross section maximum (CSA): 12 AWG. Wire cross section minimum (CSA): 30 AWG. Conductors for clamping (extra connection): The conductor has a flexible cross-section with a plastic collar DIN 46228/1 and a maximum connection size of 2.5 mm². Type of connection, additional connection: Tension-clamp connection. Conductors for clamping (rated connection): Size of blade: 0.6 x 3.5 mm. Maximum clamping range: 4 mm². Minimum clamping range: 0.05 mm². Maximum cross-sectional area, stranded connection: 4 mm². Minimum cross-sectional area, stranded: 0.5 mm². Connection direction is top. Gauge to IEC 60947-1: A3. Number of connections: 2. Length of strip: 10 mm. Connection type: tension-clamp. Type 2 connection: tension-clamp. Wire connection cross section AWG, maximum: AWG 12. Wire connection cross section AWG, minimum: AWG 30. Cross section of wire connection, neatly stranded, maximum: 4 mm². cross-section of wire connection, finely stranded, minimum: 0.5 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, maximum: 2.5 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, minimum: 0.5 mm². Wire connection cross-section, carefully stranded with wire-end ferrules DIN 46228/4, maximum: 2.5 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/4, minimum: 0.5 mm². Wire connection cross-section, solid core, maximum: 4 mm². Wire connection cross-section, solid core, minimum: 0.5 mm². Disconnect terminals. Cross-disconnect: without. Test socket integral: Yes. Slitting: pivoting. General: Installation advice: Mount directly. Rail: TS 35. Standard: IEC 60947-7-1. Wire connection cross section AWG; maximum: AWG 12. Wire connection cross section AWG, minimum: AWG 30. Ratings data: Cross-section rating: 2.5 mm². Voltage rating: 500 V. DC voltage rating: 500 V. Current rating: 20 A. Current at maximum wires: 20 amps. Standard: IEC 60947-7-1. According to IEC 60947-7-x, volume resistance is 1.33 mΩ. Rated impulse withstand voltage: 6 kV. Power loss in accordance with IEC 60947-7-x is 0.77 W. Severity of pollution: 3. UL rating data: Certificate No. (UR): E60693. Factory wiring maximum conductor size (UR): 12 AWG. Size of conductor Factory wiring minimum (UR): 30 AWG. Conductor size Field wiring maximum (UR): 12 AWG. Conductor size Field wiring minimum (UR): 30 AWG. Current C (UR) size: 20 A. Voltage size C (UR): 600 V.
