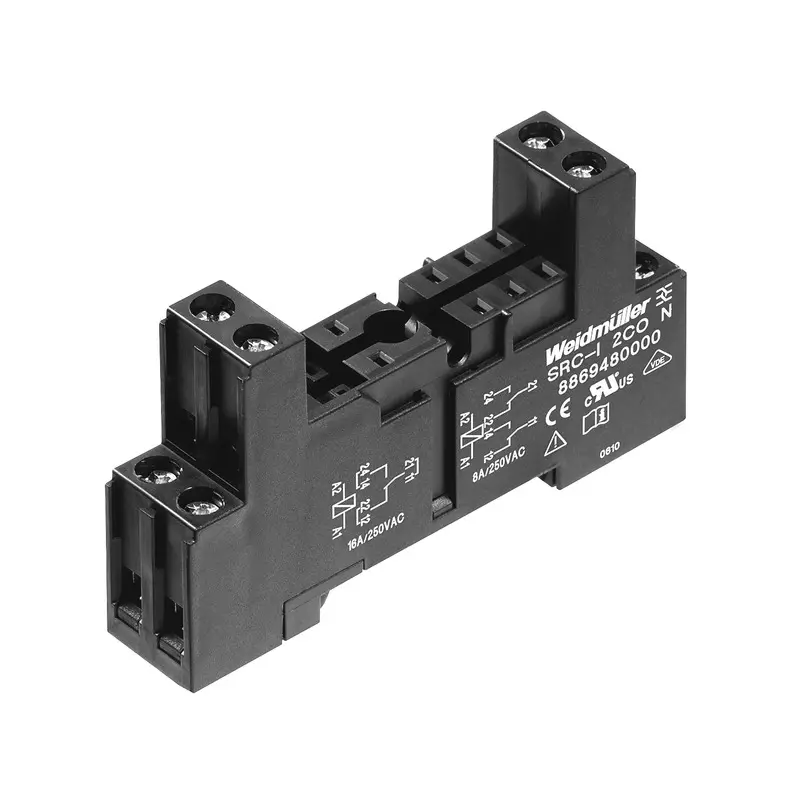

SRC-I 2CO N

Dimensions and weights: Depth: 42.3 mm. Depth (inches): 1.665 inch. Height: 77 mm. Height (inches): 3.031 inch. Width: 15.8 mm. Width (inches): 0.622 inch. Net weight: 37 g. Temperatures: Storage temperature: -40 °C...70 °C. Operating temperature: -40 °C...70 °C. Humidity: 40 °C / 93 % rel. humidity, no condensation. Environmental Product Compliance: REACH SVHC: /. Rated data UL: Certificate No. (cURus): E223759. Load side: Rated switching voltage: 250 V AC. Continuous current: 8 A @ 2CO; 12 A @ 1CO without bridged output wire connections; 16 A @ 1CO with bridged output wire connections. Max. switching voltage, AC: 250 V. Contact type: 2 CO contact. General data: Version: flat design. Rail: TS 35. Colour: black. UL 94 flammability rating: V-0. Insulation coordination: Rated voltage: 250 V. Pollution severity: 2. Surge voltage category: III. Insulating material group: IIIa. Clearance and creepage distances for control side - load side: ≥ 4 mm. Dielectric strength for control side - load side: 4 kVeff / 1 min. Type of isolation at input and output: Basic insulation. Dielectric strength of neighbouring contacts: 2.5 kVeff / 1 Min. Type of isolation at neighbouring contacts: Functional insulation. Dielectric strength of open contact: 1 kVeff / 1 min. Protection degree: IP20. Further details of approvals / standards: Certificate No. (CSA): 249409-2295474. Certificate No. (cURus): E223759. Connection data: Wire connection method: Screw connection. Stripping length, rated connection: 8 mm. Tightening torque, min.: 0.5 Nm. Tightening torque, max.: 0.7 Nm. Clamping range, rated connection: 2.5 mm². Clamping range, min.: 1 mm². Clamping range, max.: 2.5 mm². Wire cross-section, solid, min.: 1 mm². Wire cross-section, solid, max.: 2.5 mm². Wire connection cross section, finely stranded, min.: 1 mm². Wire connection cross section, finely stranded, max.: 2.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 1 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm². Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 1 mm². Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm². Wire connection cross section, finely stranded, two clampable wires, min.: 1 mm². Wire cross-section, finely stranded, two clampable wires, max.: 1.5 mm². Blade size: size PZ1. Pitch in mm (P): 5 mm. Important note: Product information: IP20 without connected conductor at complete opened clamping yoke connection.
