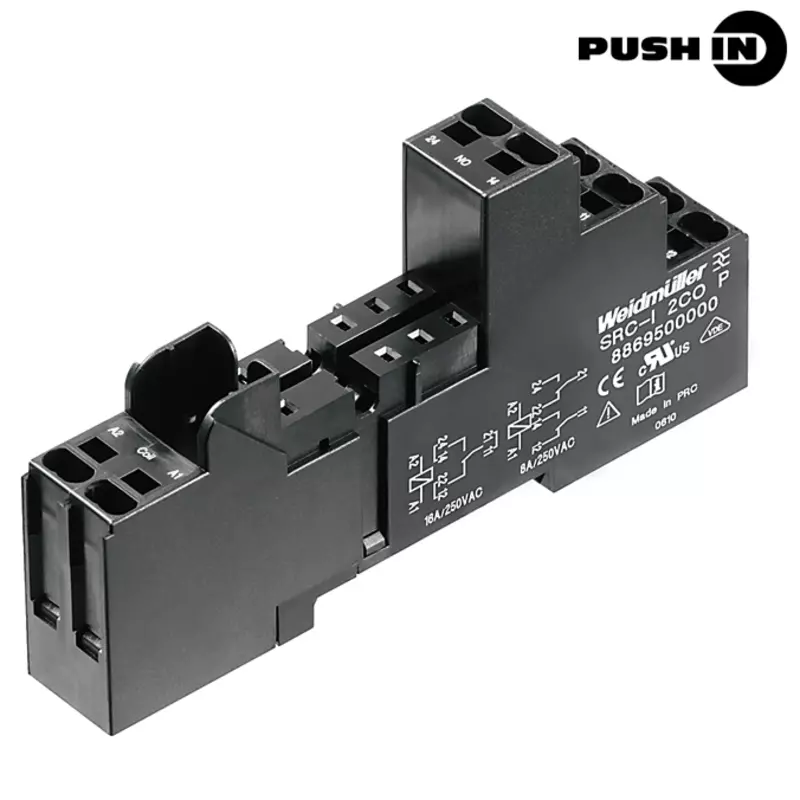

SRC-I 2CO P
SKU: 8869500000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SRC-I 2CO P:
The RIDERSERIES RCI relays' relay sockets.
One and two CO connections.
Connect by screwing and pushing in.
both typical and modest heights.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 48.3 mm.
Depth (inches): 1.902 inch.
Height: 98 mm.
Height (inches): 3.858 inch.
Width: 15.8 mm.
Width (inches): 0.622 inch.
Net weight: 39.8 g.
Temperatures:
Storage temperature: -40 °C...70 °C.
Operating temperature: -40 °C...70 °C.
Humidity: 40 °C / 93 % rel. humidity, no condensation.
Environmental Product Compliance:
REACH SVHC: /.
Rated data UL:
Certificate No. (cURus): E223759.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 8 A @ 2CO; 12 A @ 1CO without bridged output wire connections; 16 A @ 1CO with bridged output wire connections.
Max. switching voltage, AC: 250 V.
Contact type: 2 CO contact.
General data:
Rail: TS 35.
Colour: black.
UL 94 flammability rating: V-0.
Insulation coordination:
Rated voltage: 250 V.
Pollution severity: 2.
Surge voltage category: III.
Insulating material group: IIIa.
Clearance and creepage distances for control side - load side: ≥ 10 mm.
Dielectric strength for control side - load side: 5 kVeff / 1 min.
Type of isolation at input and output: reinforced insulation.
Dielectric strength of neighbouring contacts: 2.5 kVeff / 1 Min.
Type of isolation at neighbouring contacts: Functional insulation.
Dielectric strength of open contact: 1 kVeff / 1 min.
Protection degree: IP20.
Further details of approvals / standards:
Certificate No. (CSA): 249409-2295474.
Certificate No. (cURus): E223759.
Connection data:
Wire connection method: PUSH IN.
Stripping length, rated connection: 12 mm.
Tightening torque, min.: 1.5 Nm.
Tightening torque, max.: 0.75 Nm.
Clamping range, rated connection: 1.5 mm².
Clamping range, min.: 0.75 mm².
Clamping range, max.: 1.5 mm².
Wire cross-section, solid, min.: 0.75 mm².
Wire cross-section, solid, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.75 mm².
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.75 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 0.75 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.75 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1 mm².
Blade size: 0.6 x 3.5 mm.
Pitch in mm (P): 5 mm.
