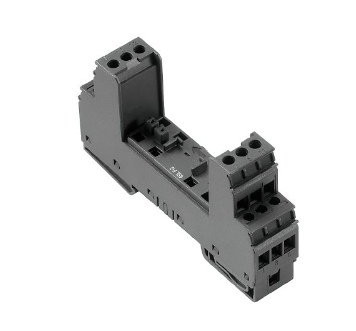

VSPC BASE 4SL FG
SKU: 8924260000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
VSPC BASE 4SL FG:
Basis component of the VSPC arresters that are pluggable.
The impedance-neutral VSPC BASE has an integrated PE foot and a floating earth PE connection (FG) with an incorporated sparkover gap that securely discharges up to 20 kA (8/20 µs) and 2.5 kA (10/350 µs) to PE.
Suitable for unearthed signal circuits.
Dimensions and weights:
Depth: 69 mm.
Depth (inches): 2.717 inch.
Height: 90 mm.
Height (inches): 3.543 inch.
Width: 17.8 mm.
Width (inches): 0.701 inch.
Net weight: 74 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -40 °C - 80 °C.
Operating temperature: -40 °C - 70.
Humidity: 5 - 96 %.
Environmental Product Compliance:
REACH SVHC: /.
Rated data UL:
Certificate No. (UL): E311081.
UL certificate:
UL 497b Certificate.
CSA protection data:
Gas group C: IIB.
Gas group D: IIA.
Gas groups A, B: IIC.
Input current, max. II: 350 mA.
Internal inductance, max. LI: 0 µH.
General data:
Colour: black.
Design: Terminal, miscellaneous.
Optical function display: No.
Protection degree: IP20.
Rail: TS 35, TS 35 x 7.5.
Segment: Measurement - Monitoring - Setting.
UL 94 flammability rating: V-0.
Version: Flange-mounted housing.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: III.
Rated data IEC / EN:
Dielectric strength at FG against PE: ≥ 500 V.
Leakage current at Un: 0 µA.
Rated current IN: 300 mA.
Signalling contact: No.
Standards:
IEC 61643-21.
IEC 62305.
DIN EN 60079-0.2009.
DIN EN 60079-11:2007.
DIN EN 60079-26:2007.
DIN EN 61241-11:2006.
Voltage type: AC/DC.
Further details of approvals:
GOST certificate: GOST-Zertifikat.
Connection data:
Stripping length: 7 mm.
Type of connection: Screw connection.
Stripping length, rated connection: 7 mm.
Tightening torque, min.: 0.5 Nm.
Tightening torque, max.: 0.8 Nm.
Clamping range, min.: 0.5 mm².
Clamping range, max.: 4 mm².
Wire cross-section, solid, min.: 0.5 mm².
Wire cross-section, solid, max.: 4 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
Connection cross-section, stranded, min.: 0.5 mm².
Connection cross-section, stranded, max.: 2.5 mm².
Blade size: 0.6 x 3.5 mm.
Ratings IECEx/ATEX/cUL:
cUL certificate: cUL Certificate.
