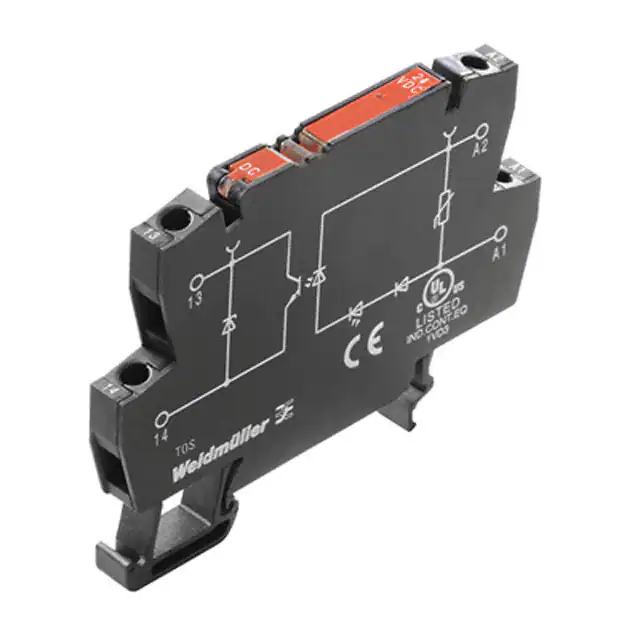

TOS 220VDC/48VDC 0 5A
SKU: 8950950000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
TOS 220VDC/48VDC 0,5A:
1 NO contact (transistor).
Wear- and maintenance-free potential separation in a compact terminal block configuration.
Accessories that are appropriate for the cross-connection and the marker.
Input and output protection circuits are integrated.
Dimensions and weights:
Depth: 55 mm.
Depth (inches): 2.165 inch.
Height: 74.4 mm.
Height (inches): 2.929 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 20.9 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -40 °C - 80 °C.
Operating temperature: -20 °C - 60 °C.
Humidity: 5-95% relative humidity, Tu = 40°C, without condensation.
Probability of failure:
MTTF: 2,500 a.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9.
Control side:
Rated control voltage: 220 V DC +10 % / -15 %.
Nominal control current: 1.65 mA DC.
Power rating: <360 mW.
Status indicator: Green LED.
Protective circuit: Varistor, Reverse polarity protection.
Input frequency: 200 kHz.
Load side:
Rated switching voltage: 5 - 48 V DC.
Continuous current: 0.5 A (DC1).
Rated switching current: 500 mA.
Load category: DC1.
Max. switching voltage, AC: 48 V.
Switch-on delay: <18 µs.
Switch-off delay: <340 µs.
Voltage drop at max. load: <1 V.
Leakage current: <10 µA.
Short-circuit-proof: No.
Protective circuit, load side: Free-wheeling diode.
Contact type: 1 NO contact (Transistor).
max. switching frequency (DC control voltage): 200 Hz.
General data:
Rail: TS 35.
Test button available: No.
Colour: black.
UL94 flammability rating component:
Component: Housing.
UL94 flammability rating: V-0.
Insulation coordination:
Rated voltage: 300 V.
Pollution severity: 2.
Surge voltage category: III.
Clearance and creepage distances for control side - load side: > 3 mm.
Dielectric strength for control side - load side: 1.2 kVeff / 1 min.
Impulse withstand voltage: 4 kV (1.2/50 µs).
Protection degree: IP20.
Further details of approvals / standards:
Certificate no. (cULus): E223474.
Connection data:
Wire connection method: Screw connection.
Stripping length, rated connection: 9 mm.
Tightening torque, min.: 0.4 Nm.
Tightening torque, max.: 0.6 Nm.
Clamping range, rated connection: 2.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 4 mm².
Wire connection cross section AWG, min.: AWG 20.
Wire connection cross section AWG, max.: AWG 12.
Wire cross-section, solid, min.: 0.5 mm².
Wire cross-section, solid, max.: 4 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire cross-section, finely stranded, min. (AWG): AWG 20.
Wire cross-section, finely stranded, max. (AWG): AWG 12.
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
Blade size: 0.6 x 3.5 mm.
