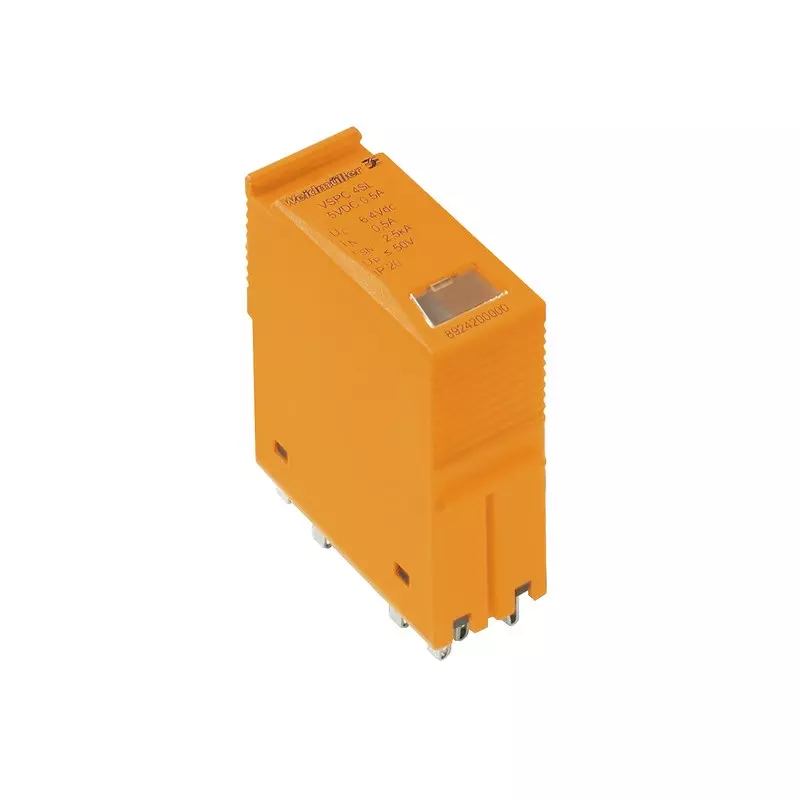

VSPC 4SL 24VDC R
SKU: 8951590000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
VSPC 4SL 24VDC R:
Analog signal/current loop (CL) protection encompasses the following signals:
Signals from current loops (analogue readings of sensors over long distances): 4-20 mA, 0-20 mA, etc.
three-, four-, and two-wire systems without a single reference potential.
For example, level indication signals from voltage sensors (0; 10 V, PT 100, etc.) and temperature measurement.
Pluggable arrester featuring pull-out and plug-in that is interruption-free and impedance-neutral.
able to be examined using the V-TEST testing apparatus.
A version with a floating-earth PE connection was used to avoid potential discrepancies.
Suitable for usage in accordance with IEC 62305 installation standard (D1, C1, C2, and C3).
A safe discharge of up to 20 kA (8/20 μs) and 2.5 kA (10/350 μs) to the PE is possible with an integrated PE foot.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 69 mm.
Depth (inches): 2.717 inch.
Height: 98 mm.
Height (inches): 3.858 inch.
Width: 17.8 mm.
Width (inches): 0.701 inch.
Net weight: 32.7 g.
Temperatures:
Storage temperature: -40 °C - 80 °C.
Operating temperature: -40 °C - 70.
Humidity: 5 - 96 %.
Probability of failure:
SIL in compliance with IEC 61508: 2.
MTTF: 2,662 a.
SFF: 86.02 %.
λges: 43.
PFH in 1*10-9 per hour: 10.7.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 71e97bb7-979f-4330-94c0-20c629bb05e3.
Rated data UL:
Certificate No. (UL): E311081.
UL certificate: UL 497b Certificate.
CSA protection data:
Gas group C: IIB.
Gas group D: IIA.
Gas groups A, B: IIC.
Input voltage, max. Ui: 28 V.
Internal capacity, max. CI: 4 nF.
Internal inductance, max. LI: 0 µH.
General data:
Colour: orange.
Design: Terminal, miscellaneous.
Optical function display: green = OK; red = arrester is defective - replace.
protected current loops: 4.
Protection degree: IP20.
Segment: Measurement - Monitoring - Setting.
UL 94 flammability rating: V-0.
Version: with warning function / function indicator.
Insulation coordination acc. to EN 50178:
Pollution severity: 2.
Surge voltage category: III.
Rated data IEC / EN:
Discharge current Imax (8/20µs) GND-PE: 10 kA.
Discharge current Imax (8/20µs) wire-PE: 10 kA.
Discharge current Imax (8/20µs) wire-wire: 10 kA.
Discharge current In (8/20µs) GND-PE: 2.5 kA.
Discharge current In (8/20µs) wire-PE: 2.5 kA.
Discharge current In (8/20µs) wire-wire: 2.5 kA.
Fuse: 0.5 A.
Lightning test current, Iimp (10/350 µs) GND-PE: 2.5 kA.
Lightning test current, Iimp (10/350 µs) Wire-PE: 2.5 kA.
Lightning test current, Iimp (10/350 µs) wire-wire: 2.5 kA.
Max. continuous voltage, Uc (DC): 28 V.
Number of poles: 2.
Overload - failure mode: Modus 2.
Protection level on output side Wire-PE 1kV/µs, typically: 40 V.
Protection level on output side Wire-wire 1 kV/µs, typically: 80 V.
Protection level on output side Wire-wire 8/20 µs, typically: 80 V.
Protection level UP (typ.): < 200 V.
Protection level, UP GND - PE: 450 V.
Protection level, UP wire - PE: 38 V.
Pulse-reset capacity: ≤ 30 ms.
Rated current IN: 300 mA.
Rated voltage (DC): 24 V.
Requirements category acc. to IEC 61643-21: C1, C2, C3, D1.
Signal transmission properties (-3 dB): 4 MHz.
Signalling contact: UN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit.
Standards: IEC 61643-21.
Surge current-carrying capacity C1: < 1 kA 8/20 μs.
Surge current-carrying capacity C2: 5 kA 8/20 μs.
Surge current-carrying capacity C3: 100 A 10/1000 μs.
Surge current-carrying capacity D1: 2.5 kA 10/350 μs.
Voltage type: DC.
Volume resistance: 4.7 Ω.
Further details of approvals:
GOST certificate: GOST-Zertifikat.
Connection data:
Type of connection: Pluggable in VSPC BASE.
Ratings IECEx/ATEX/cUL:
cUL certificate: cUL Certificate.
Important note:
Product information:
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD.
The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.
